Technical sheet of OnePlus Ace 5

Description

OnePlus has once again raised the bar in the smartphone market with the release of their latest mid-range device, the OnePlus Ace 5. This sleek and powerful smartphone is packed with cutting-edge features that make it a standout among its competitors. With a release date set for December 2024, the OnePlus Ace 5 is sure to make waves in the tech world.

Design & Materials: The OnePlus Ace 5 boasts a stunning design that is both stylish and functional. The device features a gorgeous 6.78-inch AMOLED screen with a resolution of 1264x2780 (UHD), providing users with crisp and vibrant visuals. The screen also supports HDR10+ for an enhanced viewing experience. With a maximum brightness of 1600 cd/m², the display is easily viewable even in bright sunlight.

In terms of materials, the OnePlus Ace 5 is constructed with a combination of aluminium alloy and glass, giving it a premium look and feel. The device has a usable surface of 90.7%, providing users with ample screen real estate for all their needs. For those looking for something a bit more unique, OnePlus also offers a special edition of the Ace 5 in a celadon-ceramic finish, weighing in at 223g.

Audio is an important aspect of the smartphone experience, and the OnePlus Ace 5 delivers with stereo speakers and Dolby Atmos technology. Users can enjoy immersive sound quality whether they're watching videos, playing games, or listening to music.

Hardware: Under the hood, the OnePlus Ace 5 is powered by the Qualcomm Snapdragon 8 Gen3 processor, built on a 4nm process for improved efficiency and performance. Paired with either 12GB or 16GB of RAM (LPDDR5X), users can expect smooth multitasking and gaming experiences. Storage options range from 256GB to a whopping 1TB, using UFS Storage 4.0 for lightning-fast read and write speeds.

In terms of performance, the OnePlus Ace 5 shines on the AnTuTu benchmark, scoring an impressive 2330980. Security is also a top priority, with a fingerprint display for quick and secure unlocking. Additionally, the device features a cooling system to prevent overheating during intensive use.

Camera: The OnePlus Ace 5 comes equipped with a versatile triple camera setup that allows users to capture stunning photos and videos. The main camera features a Sony IMX906 sensor with a resolution of 50.0Mpx and an aperture of f/1.8, delivering sharp and detailed images even in low light conditions. The wide-angle lens uses an Omnivision OV08D10 sensor with 8.0Mpx and an aperture of f/2.2, while the macro lens provides close-up shots with a 2.0Mpx sensor and f/2.4 aperture.

Selfie enthusiasts will appreciate the Samsung S5K3P9 front-facing camera, which boasts 16.0Mpx resolution and f/2.45 aperture. The OnePlus Ace 5 also includes features like optical stabilization (OIS), 4K video recording, a 6P lens, and an ultra-wide-angle lens with a 112º field of view for creative photography.

Connectivity: Connectivity options on the OnePlus Ace 5 are top-notch, with Bluetooth 5.4, dual SIM support, NFC, WiFi 6 (802.11ax), and GPS (L1+L5) for accurate location tracking. The device also includes an infrared sensor for added convenience.

Battery: One of the standout features of the OnePlus Ace 5 is its massive 6415mAh battery, ensuring long-lasting usage without the need for constant recharging. When it's time to top up, the device supports fast charging at an impressive 80.0W, allowing users to quickly get back to using their device without any downtime.

In conclusion, the OnePlus Ace 5 is a powerhouse of a smartphone that combines premium design, top-tier hardware, and cutting-edge features. With its impressive camera capabilities, high-performance chipset, and long-lasting battery, the OnePlus Ace 5 is sure to attract tech-savvy consumers looking for a mid-range device that delivers on all fronts. Stay tuned for the release of the OnePlus Ace 5 in December 2024 and experience the future of mobile technology.

Read More

Brand

Brand OnePlus
Aliases PKG110
Best Sellers
Smartphones by OnePlus

OnePlus Ace 5 prices

Versions and prices
OnePlus Ace 5 China · 12GB · 256GB $ 397
OnePlus Ace 5 China · 12GB · 512GB $ 525
OnePlus Ace 5 China · 16GB · 256GB $ 487
OnePlus Ace 5 China · 16GB · 512GB $ 550
OnePlus Ace 5 China · 16GB · 1TB $ 651
Read More

Release Date

Release dateDecember 2024, 5 months ago
Launch priceCN¥ 2,299.00 ($ 322.38)

Related

Predecessor
Similar name

Design & Materials of OnePlus Ace 5

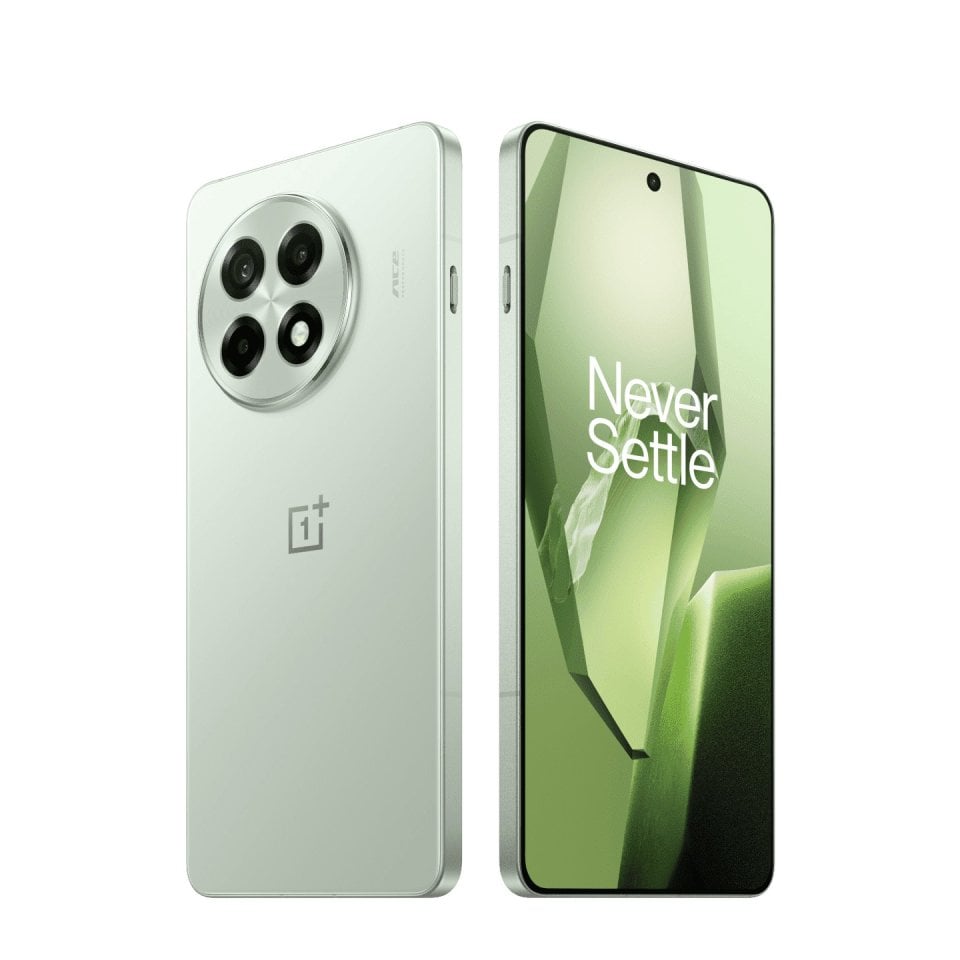

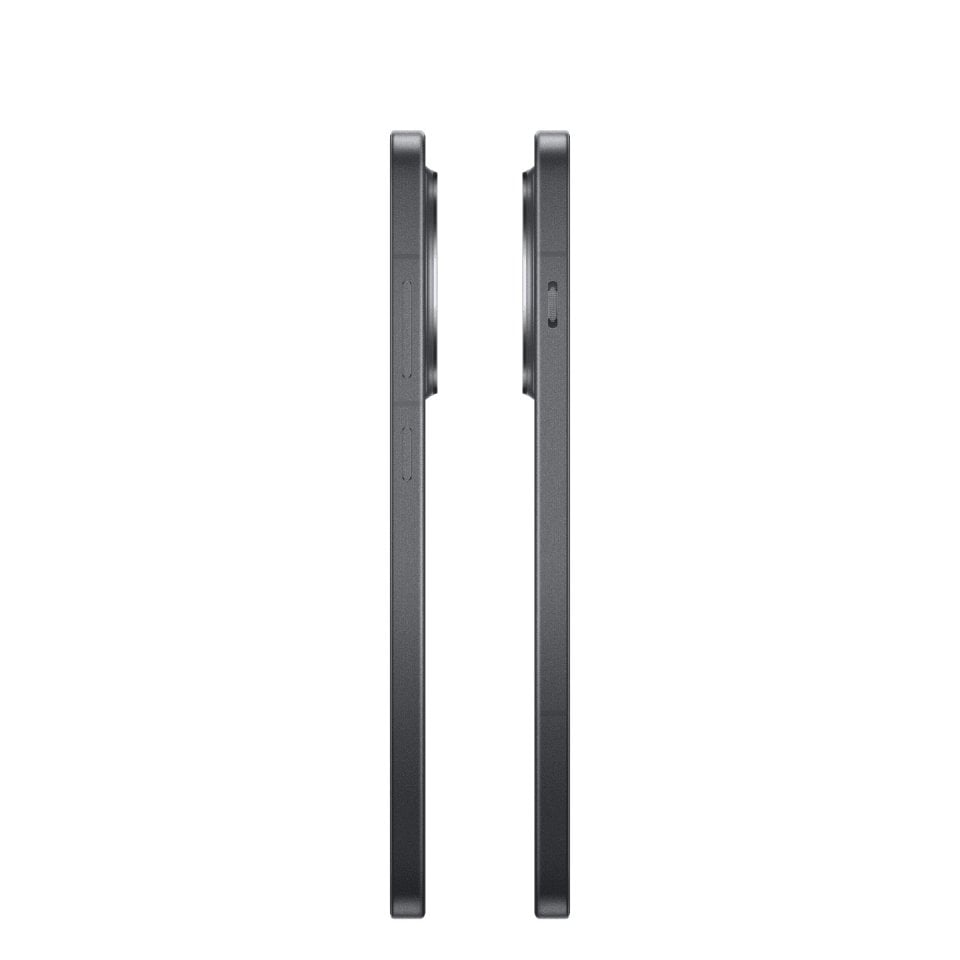

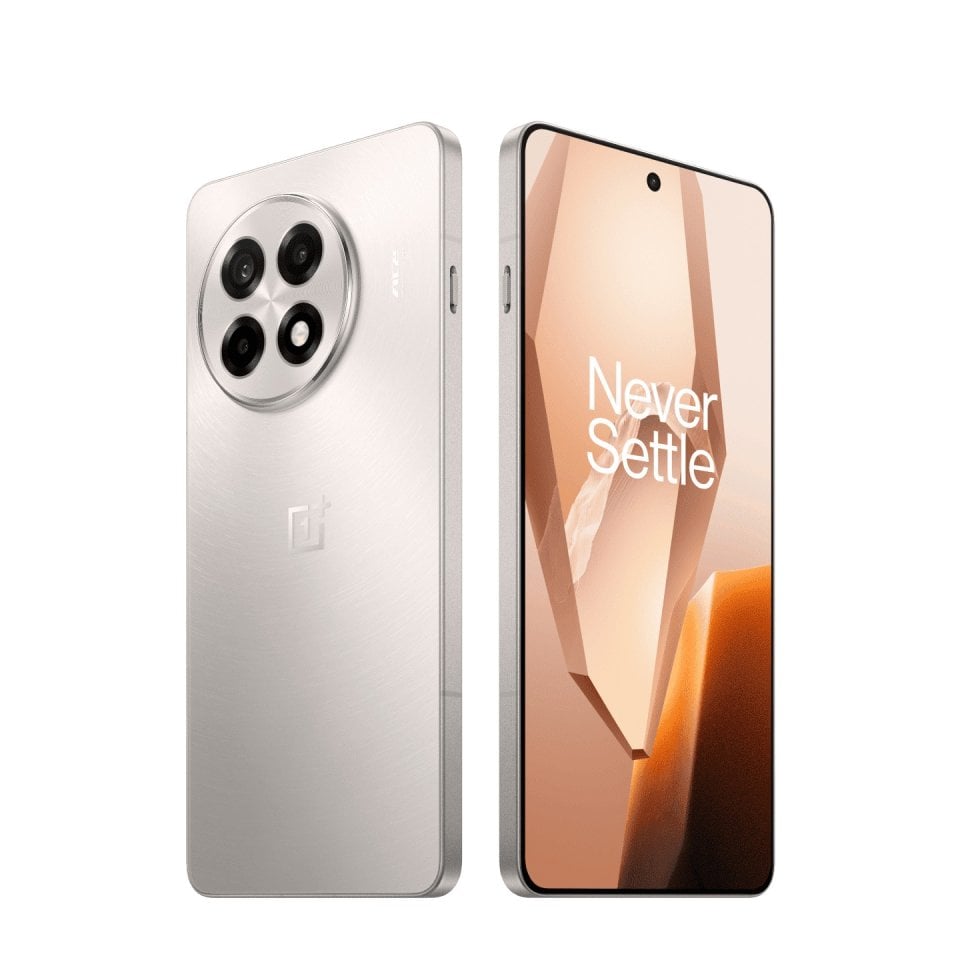

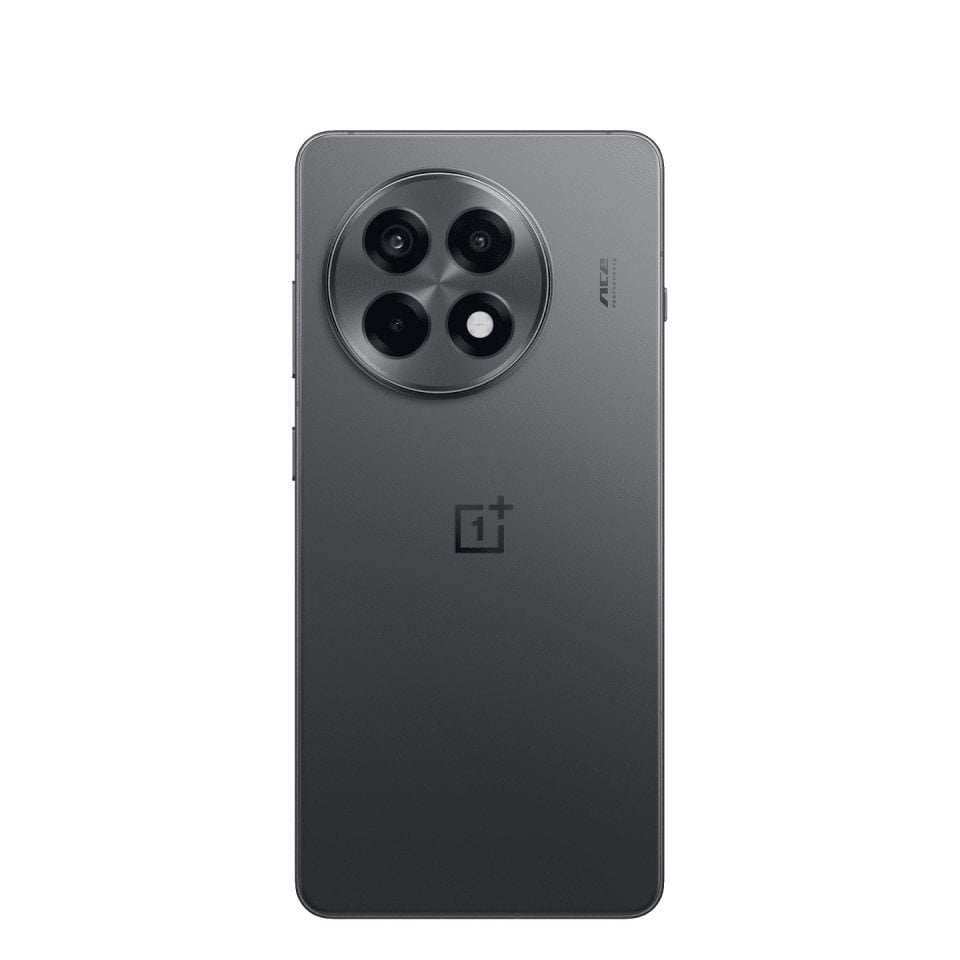

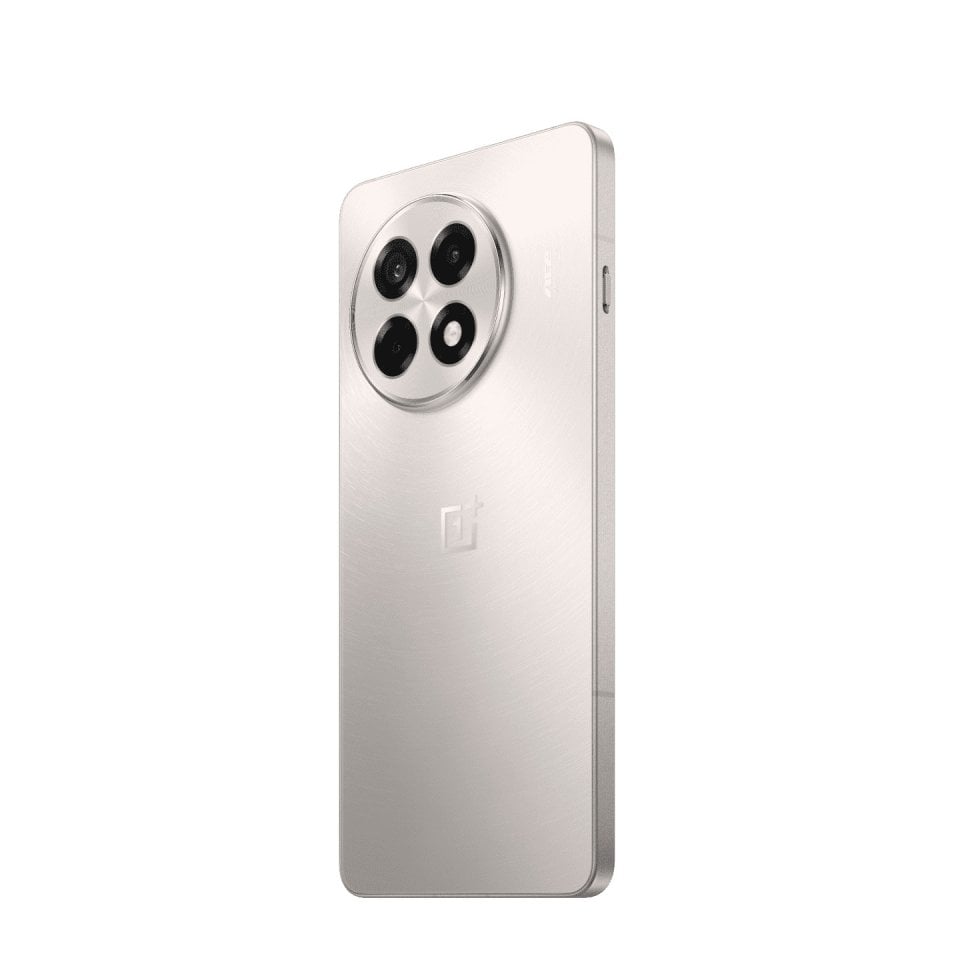

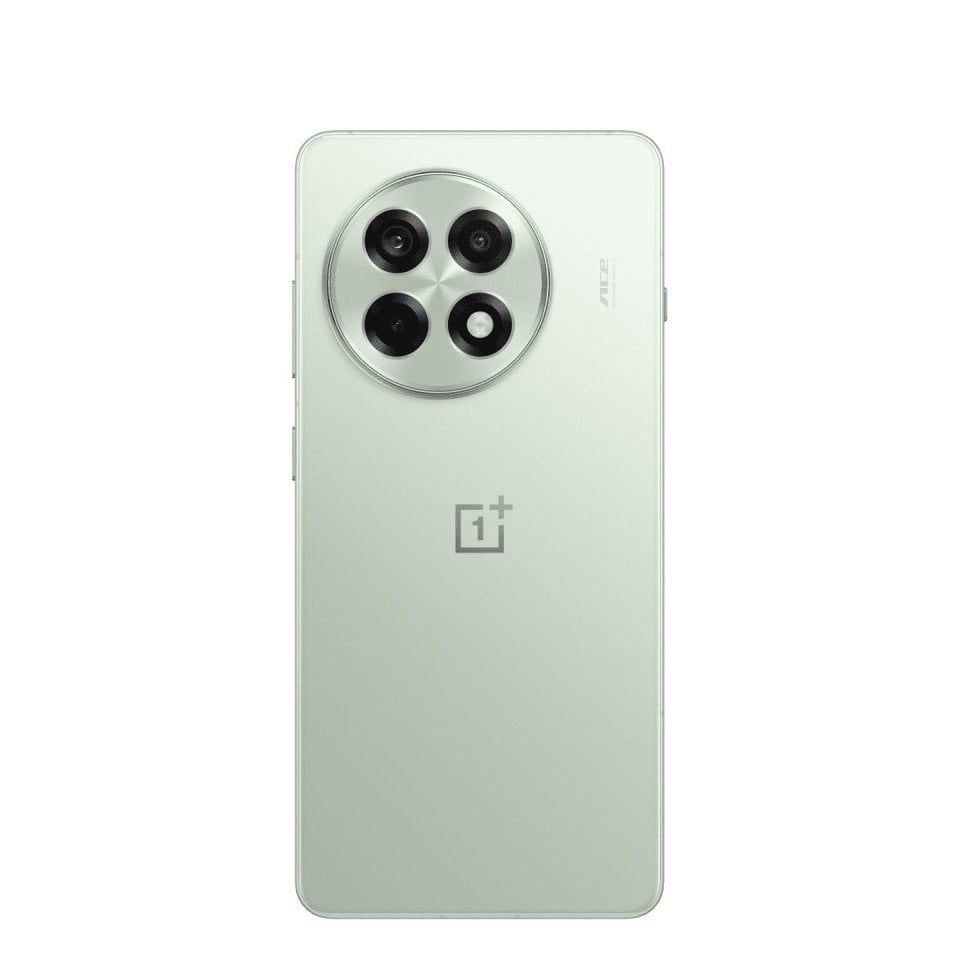

Image gallery

Image gallery
  • where to buy OnePlus Ace 5
  • best price for OnePlus Ace 5
  • deals for OnePlus Ace 5
  • stores that sells OnePlus Ace 5
  • buy cheap OnePlus Ace 5
  • where to buy OnePlus Ace 5
  • best price for OnePlus Ace 5
  • deals for OnePlus Ace 5
  • stores that sells OnePlus Ace 5
  • buy cheap OnePlus Ace 5
  • where to buy OnePlus Ace 5
  • best price for OnePlus Ace 5
  • deals for OnePlus Ace 5

Structure

Size
75.8 mm161.7 mm8.0 mm
Print 3D Model
Weight 206 g
Usable surface 91 %
Materials Aluminium alloy , Glass
Resistance certificates (dust, water) IP65
Colors
Black
Green
Sand

Screen

Diagonal
6.78"
Type AMOLED
8T
Aspect Ratio 20:9
Resolution 1264 x 2780 px UHD
Density 450 ppi Very high density
Others
  • Hole-punch Notch
  • SGS Certified
  • Eye Care Display
  • 1-120 Hz refresh rate
  • 2160 Hz PWM
  • Touch sampling rate 240 Hz
  • Brightnes 800 cd/m² (typ)
  • Max brightness HBM - 1600 cd/m²
  • Peak brightness - 4500 cd/m²
  • TÜV Rheinland Eye Comfort Certification
  • HDR10+
  • DCI-P3
  • 10 Bits panel
  • Dolby Vision
  • Scratch resistant
  • Capacitive
  • Multi-touch
  • Frameless
  • LTPO (Low Temperature PolySilicon oxide)
Best big screen mobilesBest mobile phones with AMOLED screen
Others
Design
Weight: 223g celadon-ceramic special edition

Performance & Hardware of OnePlus Ace 5

Processor

Model Qualcomm Snapdragon 8 Gen3
CPU 1x3.3GHz CortexX4 + 3x3.2 GHz CortexA720 + 2x3.0 GHz CortexA720 + 2x2.3 GHz CortexA520
Type Octa-Core
Nanometer 4 nm
Frequency 3.3 GHz
64 Bits Yes
More smartphones with Qualcomm Snapdragon 8 Gen3 processor

Graphics

GPU Adreno 750

RAM

RAM 12 GB
Type RAM LPDDR5X
More smartphones with 12GB RAM memory

Antutu

Score
2.330.980 Antutu v10
Overall performance better than 98% of devices

Storage

Capacity 256 GB
Type UFS Storage 4.0
SD Slot No
More smartphones with 256GB of internal storage

Security

Fingerprint Yes, in screen

Sensors

Fingerprint Yes
Proximity Yes
Light sensor Yes
Accelerometer Yes
Compass Yes
Gyroscope Yes
Hall Yes
Audio
Audio
  • Stereo Speakers
Others
Notifications LED --
Cooling system Yes
Gaming buttons No

Camera of OnePlus Ace 5

Triple rear camera

Standard
1
Resolution 50 Mpx
Sensor Sony IMX906
Type CMOS BSI 2
Aperture ƒ/ 1.8
ISO --
Pixel size 1.00 µm
Pixel Binning 1-4 (2x2)
Sensor size 1/1.56"
2
Resolution
8 Mpx
Sensor
Omnivision OV08D10
Type
ISOCELL
Aperture
ƒ/ 2.2
Pixel size
1.12 µm
Sensor size
1/4"
3
Resolution
2 Mpx
Sensor
--
Type
CMOS
Aperture
ƒ/ 2.4
Pixel size
--
Flash LED
Optical Stabilisation Yes
Slow Motion Video Yes, 480 fps
Features
  • Tracking AF
  • Noise reduction
  • Time-Lapse
  • 4K Video
  • Digital zoom
  • Triple camera
  • Digital image stabilization
  • Optical Stabilization (OIS)
  • Ultra stable video
  • Autofocus
  • Touch focus
  • Continuous autofocus
  • Manual focus
  • Laser AF
  • Phase detection autofocus (PDAF)
  • Continuous shooting
  • Geotagging
  • Panorama
  • HDR
  • Face detection
  • White balance settings
  • ISO settings
  • Exposure compensation
  • Scene mode
  • Self-timer
  • RAW
  • Night Mode
More smartphones with IMX906 lens modelMore smartphones with LED

Selfie

Resolution 16 Mpx
Sensor Samsung S5K3P9
Type CMOS
Aperture ƒ/ 2.45
Pixel size 1.00 µm
Pixel Binning 1-4 (2x2)
Sensor size 1/3.1"
Others
Extra
  • 6P Lens
  • Ultra wide angle lens 5P 112º
See more details
Kimovil Frequency Checker

Network compatibility

Go to tool

Connectivity of OnePlus Ace 5

Bands

5G n1 (2100), n3 (1800), n5 (850), n8 (900), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n77 (3700), n78 (3500)
4G LTE B1 (2100), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B8 (900), B18 (800), B19 (800), B26 (850), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600), B66 (1700/2100)
3G B1 (2100), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800)
2G CDMA BC0 (800), B3 (1800), B5 (850), B8 (900)

SIM card

TypeDual SIM Dual Standby (Nano SIM + Nano SIM)

SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be)
Others
  • Dual band
  • Wi-Fi Hotspot
  • Wi-Fi Direct
  • Wi-Fi Display
  • Wi-Fi MiMO

Bluetooth

Version Bluetooth 5.4 LELow energy consumption
Profiles
  • A2DP (Advanced Audio Distribution Profile)
  • LE (Low Energy)
  • APT-x
  • LDAC
  • SBC
  • AAC

Navigation

Supports A-GPS, GLONASS, Beidou, QZSS, Galileo, GPS (L1+L5), GLONASS (L1), BeiDou (B1), Galileo (E1+E5a), BeiDou (B2), QZSS (L1 + L5)

USB

Charging Yes
Mass Storage Yes
USB On-The-Go (OTG) Yes
USB Type C Yes
USB Host 2.0 Yes

SAR

-- --
Others
NFC
Yes
Audio Jack
No
Radio FM
No
Computer sync
Yes
OTA sync
Yes
Infrared
Yes
Tethering.
Yes
DLNA
Yes
VoLTE
Yes
VoWiFi
Yes
NFC eSE
Yes

Battery of OnePlus Ace 5

Capacity
6415 mAh
Type Si-Carbon Li-Ion
Fast charge Yes , 80.0W
Others
  • Non-removable

Software of OnePlus Ace 5

Software

Operating System Android 15
ColorOS 15 (Android 15)
Google Services Without Google Mobile services
Updates
  • OS updates: 2 years
  • Security updates: 3 years
More smartphones with ColorOS 15 (Android 15) operating system
