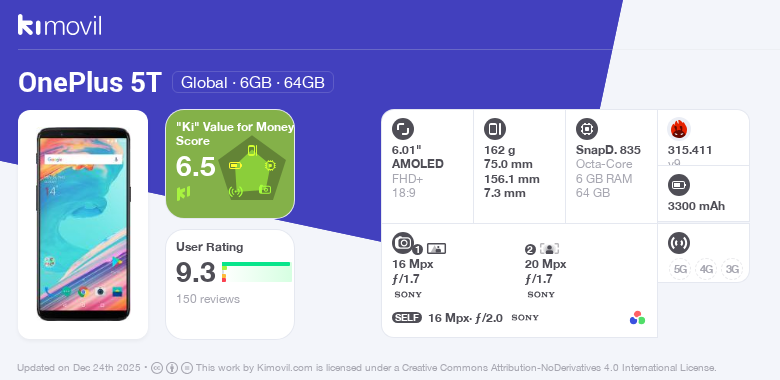

Technical sheet of OnePlus 5T
Description
The OnePlus brand has evolved its number 5 terminal with this new version T; in this case it has not opted for a simple battery upgrade, as it did with the evolution of the Oneplus 3 to the Oneplus 3T, since it has kept the 3300 mAh, but it has been really revolutionary in reducing the lateral and upper edges, following the trend of the market in borderless terminals, and moving to a 18: 9 format 6.01" screen.
On the hardware side, it continues using the current top-of-the-range processor, the Snapdragon 835, to which has been added by 6 or 8 GB of LPDDR4X RAM and a 64 or 128 GB type UFS 2.1 storage, which makes it one of the most powerful terminals in the market.
One detail that shows the power of this terminal is that it has been able to get more than 217,000 points in the Antutu test (version 7) being one of the top of the range in 2017. You can see the current Top Antutu list here . To all the above we must add one of the best cameras on the market accompanied by a Sony imx398 sensor that will delight anyone.
Brand
| Brand | OnePlus |
|---|---|
| Aliases | A5010 |
| Best Sellers |
OnePlus 5T prices
| OnePlus 5T • Global · 6GB · 64GB | |
|---|---|
| OnePlus 5T • Global · 8GB · 128GB | $ 505 |
Release Date
| Release date | November 2017, 6 years ago |
|---|
Related
- Predecessor
- Successors
Design & Materials of OnePlus 5T
Image gallery
| Image gallery |
|---|
Structure
| Size | 75.0 mm•156.1 mm•7.3 mm Print 3D ModelSee more details |
|---|---|
| Weight | 162 g |
| Usable surface | 79 % |
| Materials | Aluminium alloy |
| Colors | White Red Gray |
Screen
| Diagonal |
6.01"
See more details |
|---|---|
| Type |
AMOLED
Samsung |
| Aspect Ratio | 18:9 |
| Resolution | 1080 x 2160 px • FHD+ |
| Density | 402 ppi • Very high density |
| Others |
|
149 reviews
149 reviews
149 reviews
149 reviews
Performance & Hardware of OnePlus 5T
Processor
| Model | Qualcomm Snapdragon 835 |
|---|---|
| CPU | 4x Kryo 280 2.45 GHz + 4x Kryo 280 1.9 GHz |
| Type | Octa-Core |
| Nanometer | 10 nm |
| Frequency | 2.45 GHz |
| 64 Bits | Yes |
Graphics
| GPU | Qualcomm Adreno 540 |
|---|
RAM
| RAM | 6 GB |
|---|---|
| Type | LPDDR4X RAM |
Antutu
| Score |
315.411
• Antutu v9
Overall performance better than 0% of devices
See more details |
|---|
Storage
| Capacity | 64 GB |
|---|---|
| Type | UFS Storage 2.1 |
| SD Slot | No |
Security
| Fingerprint | Yes, in the back |
|---|
Sensors
| Fingerprint | Yes |
|---|---|
| Proximity | Yes |
| Light sensor | Yes |
| Accelerometer | Yes |
| Compass | Yes |
| Gyroscope | Yes |
| Gravity | Yes |
| Hall | Yes |
| Notifications LED | Color LED Notifications |
|---|---|
| Cooling system | No |
| Gaming buttons | No |
| Extra |
|
149 reviews
149 reviews
149 reviews
Camera of OnePlus 5T
Double rear camera
Standard
| 1 |
|---|---|
| Resolution | 16 Mpx |
| Sensor | Sony IMX398 Exmor RS |
| Type | CMOS BSI |
| Aperture | ƒ/ 1.7 |
| ISO | 100 - 3200 |
| Pixel size | 1.12 µm |
| Sensor size | 1/2.8" |
- 2
- Resolution
- 20 Mpx
- Sensor
- Sony IMX376 Exmor RS
- Type
- CMOS BSI
- Aperture
- ƒ/ 1.7
- Pixel size
- 1.00 µm
- Pixel Binning
- 1-4 (2x2)
- Sensor size
- 1/2.78"
| Flash | Dual LED |
|---|---|
| Optical Stabilisation | No |
| Slow Motion Video | Yes, 120 fps |
| Features |
|
Selfie
| Resolution | 16 Mpx |
|---|---|
| Sensor | Sony IMX371 Exmor |
| Type | CMOS BSI |
| Aperture | ƒ/ 2.0 |
| Pixel size | 1.00 µm |
| Sensor size | 1/3" |
- Extra
- PDAF Focus
- Pixel size1.2 μm
- Focal length 27.22mm
- Second rear camera 20MP telephoto
- Second rear camera Sony IMX376K Exmor RS
- Second rear camera f/1.7 aperture size
- Second rear camera Pixel size 1.0 μm
- Front
- Sensor Sony IMX371 Exmor RS
- f/2.0 aperture
- Pixel size 1.0 μm
- 1080p 30fps video
149 reviews
149 reviews
149 reviews
149 reviews
Compara las cámaras de los móviles con fótos técnicas en condiciones de alta y baja luminosidad...
Technical photos
Test photos
Connectivity of OnePlus 5T
Bands
| 4G LTE | B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B29 (700), B30 (2300), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B66 (1700/2100) |
|---|---|
| 3G | B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900), B34 (TD 2000), B39 (TD 1900+) |
| 2G | CDMA BC0 (800), B2 (1900), B3 (1800), B5 (850), B8 (900) |
SIM card
| Type | Dual SIM
Dual Standby (Nano SIM + Nano SIM)
SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM... |
|---|
Wi-Fi
| Standards | 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac |
|---|---|
| Others |
|
Bluetooth
| Version | Bluetooth 5.0 |
|---|---|
| Profiles |
|
Navigation
| Supports | GPS, A-GPS, GLONASS, Beidou, Galileo |
|---|
USB
| Charging | Yes |
|---|---|
| Mass Storage | Yes |
| USB On-The-Go (OTG) | Yes |
| USB Type C | Yes |
SAR
| European measurement |
1.680 W/Kg on head,
1.710 W/Kg on body The European Union sets a limit of 2 W/kg averaged over 10 grams of tissue. |
|---|---|
| American measurement |
1.410 W/Kg on head,
0.510 W/Kg on body The FCC limit is 1.6 W/kg measured in a volume of 1 gram of tissue |
- NFC
- Yes
- Audio Jack
- Yes
- Radio FM
- No
- Computer sync
- Yes
- OTA sync
- Yes
- Tethering.
- Yes
- DLNA
- Yes
- VoLTE
- Yes
149 reviews
149 reviews
149 reviews
Battery of OnePlus 5T
| Capacity | 3300 mAh See more details |
|---|---|
| Type | Li-Polymer |
| Fast charge | Yes |
| Others |
|
| Extra |
|
- 15%Two days or more
- 50%More than one day
- 27%One day
- 7%Less than a day
- 1%Less than half day
149 reviews
Software of OnePlus 5T
Software
| Operating System |
Android 10
Q
Android 10 |
|---|---|
| Google Services (official) | Yes |
- 41%It comes with a clean operating system
- 54%It has preinstalled apps but they don't bother me
- 4%It has preinstalled apps that I can't uninstall
149 reviews
- 64%Every two months or less
- 29%Every six months
- 5%Once a year
- 2%Never
149 reviews
Reviews
Video reviews
User reviews about the OnePlus 5T
- 136
- 10
- 1
- 1
- 1
- Screen9.0
- Performance9.3
- Camera8.6
- Connectivity9.5
- Battery8.2
It'll only take a minute, you'll help people decide.
Latest reviews added
Compare
Add to compare
- OnePlus 5TGlobal · 6GB · 64GB
Compared with...
- OnePlus Nord 2Global · 8GB · 128GBFrom $ 326vs
OnePlus 5TGlobal · 6GB · 64GBView comparison
Questions · FAQ
Frequently asked questions about the OnePlus 5T.
What are the features of the OnePlus 5T?
These are the main features and specifications of the OnePlus 5T:
- Screen: 6.01" AMOLED
- Resolution: 1080 x 2160 px · FHD+
- RAM: 6GB - 8GB
- Storage: 64GB - 128GB
- Processor: Qualcomm Snapdragon 835
What is the price of OnePlus 5T?
The OnePlus 5T price in United States is 505$. Below you can see the current price for the OnePlus 5T:
How good is the OnePlus 5T?
The OnePlus 5T has an average score of 9.3 based on Kimovil user ratings.
How long does the battery of the OnePlus 5T last?
The OnePlus 5T battery has a capacity of 3300 mAh, and the estimated battery life is over a day according to Kimovil users.
In which colours is the OnePlus 5T available?
The OnePlus 5T is available in 3 colours: White, Red and Gray.
When was the OnePlus 5T release date?
The OnePlus 5T was unveiled on Thursday, November 16, 2017.
Which camera does the OnePlus 5T have?
The OnePlus 5T has a double rear camera and its main sensor is Sony IMX398 Exmor RS with a resolution of 16Mpx.
