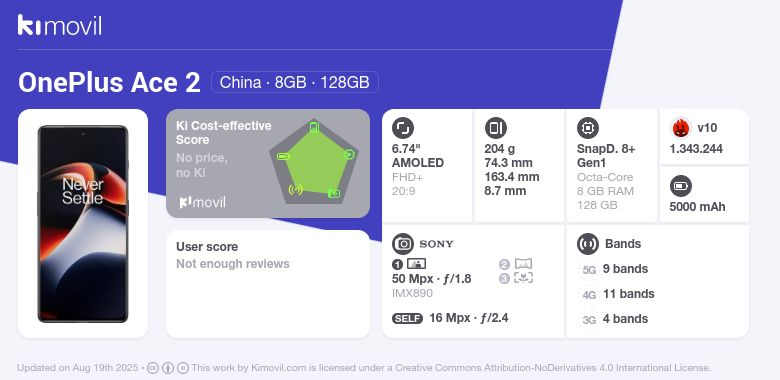

Technical sheet of OnePlus Ace 2
Description
The OnePlus Ace 2 is the latest high-end smartphone from OnePlus, set to be released in February 2023. The device packs a lot of features and specs, such as a 6.74 inch AMOLED display with a resolution of 1240x2772 (FHD+), a 120 Hz refresh rate, 1100 cd/m² max brightness, and 2 million:1 contrast ratio with HDR10+. It has stereo speakers, Dolby Atmos, and a noise cancellation microphone. In terms of materials, the device has Corning Gorilla Glass 5 on the front and back and a plastic frame. It boasts an 89.5% usable surface.
Under the hood, the OnePlus Ace 2 will be powered by a Qualcomm Snapdragon 8+ Gen 1 3.0GHz (4nm) processor, with 8GB, 12GB, or 16GB of RAM (LPDDR5X). It will offer 128GB, 256GB, or 512GB of storage (UFS storage 3.1). It also has an impressive AnTuTu (v9) benchmark score of 987000 and a fingerprint display for security. Additionally, it has an 8-channel through VC of 5177mm² and a phase-change graphene of 6355.32mm² for cooling.
The camera setup includes a triple camera with a standard Sony IMX890 50.0Mpx f/1.8 CMOS lens, a wide angle Omnivision OV08D10 8.0Mpx f/2.2 CMOS lens, and a macro Omnivision OV02B10 2.0Mpx f/2.4 lens. For selfie, you get a Samsung S5K3P9 16.0Mpx f/2.4 lens, plus optical stabilization (OIS) and 4K video.
As for connectivity, the OnePlus Ace 2 offers Bluetooth 5.3, Dual SIM, NFC, WiFi 6 (802.11ax), GPS (L1+L5), and Infrared. Finally, the device has a generous 5000mAh battery that supports 100.0W fast charging.
All in all, the OnePlus Ace 2 is a powerful and feature-packed device that is sure to please any OnePlus enthusiast. With its top-of-the-line specs and features, this is a phone that will be the envy of all. With its release slated for February 2023, it is definitely worth keeping an eye out for!
Brand
| Brand | OnePlus |
|---|---|
| Aliases | PHK110, OnePlus 11R 5G |
| Best Sellers |
OnePlus Ace 2 prices
Release Date
| Release date | February 2023, 3 years ago |
|---|
Related
- Predecessor
- Successors
Design & Materials of OnePlus Ace 2
Image gallery
| Image gallery |
|---|
Structure
| Size | 74.3 mm•163.4 mm•8.7 mm Print 3D ModelSee more details |
|---|---|
| Weight | 204 g |
| Usable surface | 89 % |
| Materials | Plastic , Leather , Corning Gorilla Glass 5 |
| Colors | Black Blue Red |
Screen
| Diagonal |
6.74"
See more details |
|---|---|
| Type | AMOLED |
| Aspect Ratio | 20:9 |
| Resolution | 1240 x 2772 px • FHD+ |
| Density | 455 ppi • Very high density |
| Others |
|
Performance & Hardware of OnePlus Ace 2
Processor
| Model | Qualcomm Snapdragon 8+ Gen1 3.0GHz |
|---|---|
| CPU | 1x3.0 GHz Cortex•X2 +3x2.5 GHz Cortex•A710 + 4x1.8 GHz Cortex•A510 |
| Type | Octa-Core |
| Nanometer | 4 nm |
| Frequency | 3 GHz |
| 64 Bits | Yes |
Graphics
| GPU | Qualcomm Adreno 730 |
|---|
RAM
| RAM | 8 GB |
|---|---|
| Type | RAM LPDDR5X |
Antutu
| Score |
1.343.244
• Antutu v10
Overall performance better than 87% of devices
See more details |
|---|
Storage
| Capacity | 128 GB |
|---|---|
| Type | UFS Storage 3.1 |
| SD Slot | No |
Security
| Fingerprint | Yes, in screen |
|---|
Sensors
| Fingerprint | Yes |
|---|---|
| Proximity | Yes |
| Light sensor | Yes |
| Accelerometer | Yes |
| Compass | Yes |
| Gyroscope | Yes |
| Gravity | Yes |
| Audio |
|
|---|
| Notifications LED | -- |
|---|---|
| Cooling system | Yes |
| Gaming buttons | No |
| Extra |
|
Camera of OnePlus Ace 2
Triple rear camera
Standard
| 1 |
|---|---|
| Resolution | 50 Mpx |
| Aperture | ƒ/ 1.8 |
| Sensor | Sony IMX890 |
| Type | CMOS |
| Sensor size | 1/1.56" |
| Pixel size | 1.00 µm |
| Pixel Binning | 1-4 (2x2) |
- 2
- Resolution
- 8 Mpx
- Aperture
- ƒ/ 2.2
- Sensor
- Omnivision OV08D10
- Type
- CMOS
- Sensor size
- 1/4"
- Pixel size
- 1.12 µm
- 3
- Resolution
- 2 Mpx
- Aperture
- ƒ/ 2.4
- Sensor
- Omnivision OV02B10
- Type
- CMOS
- Sensor size
- 1/5"
- Pixel size
- 1.75 µm
| Flash | Dual LED |
|---|---|
| Optical Stabilisation | Yes |
| Slow Motion Video | Yes, 480 fps |
| Features |
|
Selfie
| Resolution | 16 Mpx |
|---|---|
| Aperture | ƒ/ 2.4 |
| Sensor | Samsung S5K3P9 |
| Type | ISOCELL |
| Sensor size | 1/3.1" |
| Pixel size | 1.00 µm |
| Pixel Binning | 1-4 (2x2) |
Network compatibility
Connectivity of OnePlus Ace 2
Bands
| 5G | n1 (2100), n3 (1800), n5 (850), n8 (900), n28a (700), n40 (2300), n41 (2500), n77 (3700), n78 (3500) |
|---|---|
| 4G LTE | B1 (2100), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B8 (900), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500) |
| 3G | B1 (2100), B4 (1700/2100 AWS A-F), B5 (850), B8 (900) |
| 2G | CDMA BC0 (800), B3 (1800), B5 (850), B8 (900) |
SIM card
| Type | Dual SIM
Dual Standby (Nano SIM + Nano SIM)
SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM... |
|---|
Wi-Fi
| Standards | 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) |
|---|---|
| Others |
|
Bluetooth
| Version | Bluetooth 5.3 LELow energy consumption |
|---|---|
| Profiles |
|
Navigation
| Supports | A-GPS, GLONASS, Beidou, QZSS, Galileo, GPS (L1+L5), GLONASS (L1), BeiDou (B1), Galileo (E1+E5a), BeiDou (B2), QZSS (L1 + L5) |
|---|
USB
| Charging | Yes |
|---|---|
| Mass Storage | Yes |
| USB On-The-Go (OTG) | Yes |
| USB Type C | Yes |
| USB Host 2.0 | Yes |
SAR
| -- | -- |
|---|
Battery of OnePlus Ace 2
| Capacity | 5000 mAh See more details |
|---|---|
| Type | Li-Polymer |
| Fast charge | Yes , 100.0W |
| Others |
|
Software of OnePlus Ace 2
Software
| Operating System |
Android 13
Tiramisu
ColorOS 13 (Android 13) |
|---|---|
| Google Services | Without Google Mobile services |
