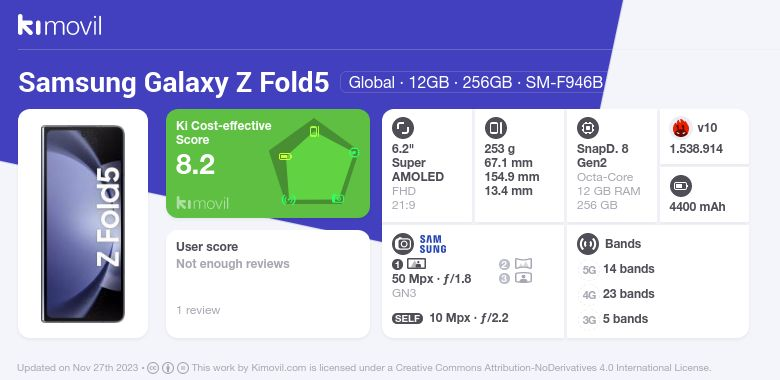

Technical sheet of Samsung Galaxy Z Fold5

Description

The Samsung Galaxy Z Fold5 is the latest high-end foldable smartphone from Samsung that is set to be released in July 2023.

The device boasts an impressive 6.2-inch Super AMOLED screen which has a resolution of 904x2316 (FHD) and a refresh rate of 120 Hz. The display also supports HDR10+, and there is a usable surface area of 80.4%. Additionally, the Galaxy Z Fold5 is able to be folded up, allowing users to store it conveniently and making it easier to carry around.

The design of the device is sleek and modern, with a combination of Aluminium, Glass, and Plastic. It also has a Corning Gorilla Glass Victus 2 for added durability and scratch resistance.

At the heart of the device is the Qualcomm Snapdragon 8 Gen2 processor which operates at 3.36 GHz, and is powered by 12GB of RAM and either 256GB, 512GB, or 1TB UFS Storage 4.0. This allows the device to achieve an impressive AnTuTu (v9) score of 1310000. There is also a fingerprint sensor on the side for security.

In terms of audio, there are stereo speakers, Dolby Atmos, and AKG Audio. Further audio enhancements come from the 384 kHz 32-bit audio output support.

The camera set up provides a triple lens array, with the main lens being a 50.0MP Samsung GN3 with a f/1.8 aperture. There is also a 12.0MP wide angle lens with a 1.120 pixel size and a f/2.2 aperture, and a 10.0MP telephoto lens with a 1.000 pixel size and a f/2.4 aperture. All these lenses have OIS for enhanced image quality. On the front, there is a Sony IMX374 with a 10.0MP sensor and an f/2.2 aperture as well as a 4MP f/1.8 for the internal front camera which is located under the display. Both can record videos up to 4K 60fps.

Connectivity wise, the device supports Bluetooth 5.2, Dual SIM, USB Host 3.0, NFC, WiFi 6 (802.11ax), GPS (L1+L5) and eSIM.

The Samsung Galaxy Z Fold5 is powered by a 4400 mAh battery and supports fast charge at 25.0W. It also has wireless and reverse charging capabilities.

Overall, the Samsung Galaxy Z Fold5 is an impressive high-end foldable smartphone that promises a lot in terms of both hardware and design. It's set to be released in July 2023 and should be a great option for those looking for a top-of-the-line foldable device.

Read More

Brand

Brand Samsung
Aliases Samsung Galaxy Z fold 5, SM-F946B, SM-F946B/DS
Best Sellers
Smartphones by Samsung

Samsung Galaxy Z Fold5 prices

Versions and prices
Samsung Galaxy Z Fold5 Global · 12GB · 256GB · SM-F946B $ 596
Samsung Galaxy Z Fold5 Global · 12GB · 512GB · SM-F946B $ 651
Samsung Galaxy Z Fold5 Global · 12GB · 1TB · SM-F946B $ 1,102
Samsung Galaxy Z Fold5 N. America · 12GB · 256GB · SM-F946U
Samsung Galaxy Z Fold5 N. America · 12GB · 512GB · SM-F946U $ 2,784
Samsung Galaxy Z Fold5 N. America · 12GB · 1TB · SM-F946U
Samsung Galaxy Z Fold5 N. America · 12GB · 256GB · CA SM-F946W
Samsung Galaxy Z Fold5 N. America · 12GB · 512GB · CA SM-F946W
Samsung Galaxy Z Fold5 N. America · 12GB · 1TB · CA SM-F946W
Samsung Galaxy Z Fold5 China · 12GB · 256GB · SM-F9460
Samsung Galaxy Z Fold5 China · 12GB · 512GB · SM-F9460
Samsung Galaxy Z Fold5 China · 12GB · 1TB · SM-F9460
Read More

Release Date

Release dateJuly 2023, 2 years ago

Related

Predecessor
Successors

Design & Materials of Samsung Galaxy Z Fold5

Image gallery

Image gallery
  • where to buy Samsung Galaxy Z Fold5
  • best price for Samsung Galaxy Z Fold5
  • deals for Samsung Galaxy Z Fold5
  • stores that sells Samsung Galaxy Z Fold5
  • buy cheap Samsung Galaxy Z Fold5
  • where to buy Samsung Galaxy Z Fold5
  • best price for Samsung Galaxy Z Fold5
  • deals for Samsung Galaxy Z Fold5
  • stores that sells Samsung Galaxy Z Fold5
  • buy cheap Samsung Galaxy Z Fold5
  • where to buy Samsung Galaxy Z Fold5

Structure

Size
67.1 mm154.9 mm13.4 mm
Print 3D Model
Weight 253 g
Usable surface 80 %
Materials Plastic , Glass , Aluminium
Resistance certificates (dust, water) IPX8
Colors
Black
Blue
Gold
Silver

Screen

Diagonal
6.2"
Type Super AMOLED
Aspect Ratio 21:9
Resolution 904 x 2316 px FHD
Density 401 ppi Very high density
Others
  • Hole-punch Notch
  • Refresh rate 120 Hz
  • Always-On Display
  • HDR10+
  • Scratch resistant
  • Corning Gorilla Glass Victus 2
  • S-Pen
  • Capacitive
  • Multi-touch
  • Frameless
  • Foldable Display
Best Mobiles with 6 inch screenBest mobiles with SuperAMOLED screen
Others
Audio
Stereo speakers
AKG audio
Dolby Atmos
384 kHz 32-bit
Unfolded Display
7.6" Dynamic AMOLED 2
FHD+ 2176 x 1812 pixels 373 ppi
5:4 aspect ratio
HDR10+
Always on display
Size: 158.5 x 128.1 x 6.5 mm
120Hz refresh rate
Dynamic refresh rate
Opinions on design and display
Is it a drop-resistant and scratch-resistant smartphone?
6.7

7 reviews

Do you think it's a nice phone?
8.6

7 reviews

Is it comfortable?
6.7

7 reviews

Can you see it well in the sunlight?
8.7

7 reviews

View all 7 opinions

Performance & Hardware of Samsung Galaxy Z Fold5

Processor

Model Qualcomm Snapdragon 8 Gen2 ( 3,36 GHz)
CPU 1x3.36GHz CortexX3 + 4x2.8 GHz CortexA715 + 3x2.02 GHz CortexA510
Type Octa-Core
Nanometer 4 nm
Frequency 3.36 GHz
64 Bits Yes
More smartphones with Qualcomm Snapdragon 8 Gen2 processor

Graphics

GPU Qualcomm Adreno 740

RAM

RAM 12 GB
Type RAM LPDDR5X
More smartphones with 12GB RAM memory

Antutu

Score
1.538.914 Antutu v10
Overall performance better than 90% of devices

Storage

Capacity 256 GB
Type UFS Storage 4.0
SD Slot No
More smartphones with 256GB of internal storage

Security

Fingerprint Yes, on the side

Sensors

Fingerprint Yes
Proximity Yes
Light sensor Yes
Accelerometer Yes
Compass Yes
Gyroscope Yes
Barometer Yes
Gravity Yes
Hall Yes
Geomagnetic Yes
Audio
Audio
  • Dolby Atmos
  • Stereo Speakers
Others
Notifications LED --
Cooling system Yes
Gaming buttons No
Opinions on performance
Does it have good sound?
8.3

7 reviews

Does it work smoothly in everyday use?
8.7

7 reviews

What's your experience been with demanding games?
8.3

7 reviews

View all 7 opinions

Camera of Samsung Galaxy Z Fold5

Triple rear camera

Standard
1
Resolution 50 Mpx
Aperture ƒ/ 1.8
Sensor Samsung GN3
Type ISOCELL
Sensor size 1/1.57"
Pixel size 1.00 µm
Pixel Binning 1-4 (2x2)
2
Resolution
12 Mpx
Aperture
ƒ/ 2.2
Sensor
--
Type
CMOS
Pixel size
1.12 µm
Telephoto lens
3
Resolution
10 Mpx
Aperture
ƒ/ 2.4
Sensor
--
Type
ISOCELL
Pixel size
1.00 µm
Flash Dual LED
Optical Stabilisation Yes
Slow Motion Video Yes, 240 fps
Features
  • Noise reduction
  • Time-Lapse
  • 4K Video
  • 8K Video
  • Digital zoom
  • Optical zoom
  • Triple camera
  • Digital image stabilization
  • Optical Stabilization (OIS)
  • AutoFraming
  • Autofocus
  • Touch focus
  • Manual focus
  • Laser AF
  • Phase detection autofocus (PDAF)
  • Laser autofocus (LAF)
  • NPU AI Engine
  • Dual front camera
  • Under display camera
  • Continuous shooting
  • Geotagging
  • Panorama
  • HDR
  • Face detection
  • White balance settings
  • ISO settings
  • Exposure compensation
  • Scene mode
  • Self-timer
  • RAW
  • Night Mode
More smartphones with GN3 lens modelMore smartphones with Dual LED

Selfie

Resolution 10 Mpx
Aperture ƒ/ 2.2
Sensor Sony IMX374
Type CMOS
Sensor size 1/3.2"
Pixel size 1.22 µm
Others
Extra
  • Internal Front camera Under Display 4MP f/1.8
  • Telephoto with OIS, 2x optical zoom
  • 123º Ultra wide angle lens
  • Video 4K 60fps
See more details
DxOMark Score
DxOMark Score
128
Mobile
127
123
Video
View on DxOMark Mobile
Opinions on the camera
Quality of daytime photos
8.4

7 reviews

Quality of nighttime photos
8.4

7 reviews

Quality of selfies
8.3

7 reviews

Does it have a powerful flash?
8.9

7 reviews

View all 7 opinions
Frequency Checker

Network compatibility

No official network bands
Go to tool

Connectivity of Samsung Galaxy Z Fold5

Bands

5G n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n20 (800), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n77 (3700), n78 (3500)
4G LTE B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B66 (1700/2100)
3G B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G B2 (1900), B3 (1800), B5 (850), B8 (900)
No official network bands

SIM card

TypeDual SIM Dual Standby (Nano SIM + eSIM)

SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be)
Others
  • Dual band
  • Wi-Fi Hotspot
  • Wi-Fi Direct
  • Wi-Fi Display
  • Wi-Fi MiMO

Bluetooth

Version Bluetooth 5.2 LELow energy consumption
Profiles
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio/Visual Remote Control Profile)
  • DIP (Device ID Profile)
  • HFP (Hands-Free Profile)
  • HID (Human Interface Profile)
  • HSP (Headset Profile)
  • LE (Low Energy)
  • MAP (Message Access Profile)
  • PAN (Personal Area Networking Profile)
  • OPP (Object Push Profile)
  • PBAP/PAB (Phone Book Access Profile)
  • APT-x
  • SBC
  • AAC

Navigation

Supports GPS, A-GPS, GLONASS, Beidou, Galileo, GPS (L1+L5), GLONASS (L1), BeiDou (B1), Galileo (E1+E5a)

USB

Charging Yes
Mass Storage Yes
USB On-The-Go (OTG) Yes
USB Type C Yes
USB Host 3.1 Yes

SAR

-- --
Others
NFC
Yes
Audio Jack
No
Radio FM
No
Computer sync
Yes
OTA sync
Yes
Tethering.
Yes
VoLTE
Yes
ANT+
Yes
No official network bands
Yes
eSIM
Yes
Ultra-wideband (UWB)
Yes
Opinions on connectivity
Does it have good coverage for calls?
7.7

7 reviews

Quality of the GPS
8.3

7 reviews

And the WiFi?
8.3

7 reviews

View all 7 opinions

Battery of Samsung Galaxy Z Fold5

Capacity
4400 mAh
Type Li-Polymer
Fast charge Yes , 25.0W
Others
Extra
  • Wireless charging 15W
  • Reverse wireless charging 4.5W
Opinions on the battery
How long does the battery last?
  • 0%
    Two days or more
  • 57%
    More than one day
  • 29%
    One day
  • 14%
    Less than a day
  • 0%
    Less than half day

7 reviews

View all 7 opinions

Software of Samsung Galaxy Z Fold5

Software

Operating System Android 13 Tiramisu
Android 13
Google Services With Google Mobile Services
Updates
  • OS updates: 4 years
  • Security updates: 5 years
More smartphones with Android 13 operating system
Opinions on the software
Did it come with preinstalled applications?
  • 0%
    It comes with a clean operating system
  • 86%
    It has preinstalled apps but they don't bother me
  • 14%
    It has preinstalled apps that I can't uninstall

7 reviews

Do you regularly receive updates?
  • 43%
    Every two months or less
  • 57%
    Every six months
  • 0%
    Once a year
  • 0%
    Never

7 reviews

View all 7 opinions

User reviews about the Samsung Galaxy Z Fold5

User score

7.8
  • 5
  • 1
  • 0
  • 0
  • 1
7 reviews
  • Screen7.7
  • Performance8.4
  • Camera8.5
  • Connectivity8.1
  • Battery7.9
Do you want to share your opinion?

It'll only take a minute, you'll help people decide.

Latest reviews added

  • Auto
    Good phone for everyday use

    I usually leave it open whenever I can, I use the pencil to take notes and notes for more than 2 or 3 hours a day and still get to 10 at night with 20% / 30% battery left to be able to stay up until 1 or more using it on YouTube or with not very demanding games, I honestly thought that the internal screen was going to break like many say but I think leaving it open 70% of the day helps the screen rest, there are days when I am more out and I can't have it open, but any time is good and people are amazed when they see you with such a beast. The cameras are a delight, good quality photos, good lighting, at night they falter a little, but it's normal. Likewise, the screen is bright enough to be enjoyed on a sunny day. Finally, I would like to say that it has nothing to envy the Z Fold6, just the raw power to get more fps in games, otherwise I consider that they are two very similar phones, is it worth saving some money and buying the 5? If you get it new, yes, if not, the 6.

    Pros
    • Big screen
    • 120Hz
    • Wireless Charging
    • Support +3 years
    • Good cameras
    • Good integration with the S-Pen
    Cons
    • Fragile screen if not cared for
    • It does not have a 3.5mm jack.
    • Does not support MicroSD cards
    • Low battery for its size
    • Something heavy
    • The hinge is slightly noticeable
    • 9.2
    • Screen8.5
    • Performance9.3
    • Camera9.5
    • Connectivity9.3
    • Battery9.0
  • Auto
    My worst nightmare

    The worst phone I've ever owned. I've been using cell phones for 30 years and considered Samsung a good manufacturer. Until I bought the Fold 5. The first thing that happened was that the screen protector came off, then I noticed that micro cracks appeared on the fold. It must be from not opening it because I barely open it. And one day suddenly I open the Fold 5 and I find a black stripe all the way down the middle and the touch screen stopped working. I send the phone to Samsung convinced that it is covered by the warranty. I want to put it into practice that I am very careful with phones and I ALWAYS wear SUPCASE cases since day 1. Now comes the best part: The repair guys send me photos as if the phone had fallen (COMPLETELY FALSE) and that if I want to fix it I have to pay them €580!!! I spent €100 on a case to protect the phone and it has NEVER fallen!!! My opinion is that the FOLD is a huge piece of crap. Just look at the hundreds of second-hand ones that are sold. Don't buy this phone. I still have to pay the financial company €1000 and it's not worth paying €600 for a useless mobile screen.

    Pros
    • Night photos
    Cons
    • The central screen breaks by itself
    • Technical service
    • Price
    • 0
    • Screen2.7
    • Performance3.6
    • Camera4.0
    • Connectivity1.0
    • Battery7.0
  • Auto
    Simply the best and most powerful fold phone!

    A professional tool that solves many tasks and with honest photos!

    • 9
    • Screen8.7
    • Performance9.0
    • Camera9.0
    • Connectivity9.3
    • Battery9.0
View all 7 opinions

The information on this web site is not guaranteed. Kimovil is not responsible for inaccuracies, omissions or any other error in the information. Any warranties regarding this information are disclaimed. Total or partial reproduction of this site is prohibited in any manner without prior written permission. The trademarks, logos and device manufacturers, software, etc. are the property of their respective owners.

Report an Error
Last update
March 12, 2025
State
  • Rumor
  • Presell
  • New
  • On Sale
Latest changes
  • New opinion 1 year ago
  • AnTuTu 1 year ago
  • Usable surface, Photos, Photos 1 year ago
  • On Sale, Version, Name, Aliases, Width, Height, Thickness, Weight, Inches, Resolution, Resolution, Density, Bluetooth, Operating System, Processor, Sensor Model, Selfie Camera, Selfie Camera, Features 1 year ago
  • Version 1 year ago
  • Storage 2 years ago
  • AnTuTu Version 2 years ago
  • Market 2 years ago
  • Camera 2 years ago
  • Camera, Sensor Model, Sensor Model 2 years ago
8.4
Ki Cost-effective
Score
  • 7.1 Design & Materials
  • 7.9 Performance & Hardware
  • 8.3 Camera
  • 8.6 Connectivity
  • 5.6 Battery
What is a Ki score?
Ki is an automatic score based on the specifications and prices of devices. It is calculated using over 200 variables to rank smartphones, tablets and other devices from best to worst.
How do we calculate the Ki?

In this case, to determine the score we evaluate 5 general aspects:

  • Design and screen
  • Hardware and performance
  • Camera
  • Connectivity
  • Battery

Once these 5 factors have been rated, we introduce the price variable. This means that any two devices with the same ratings get a different Ki score for quality vs price.

Even a device objectively worse than another may have a higher Ki score if it has a better price.

Does the Ki score change?

The Ki varies as time goes by. As new devices with better specifications enter the market the Ki score of older devices will go down, always being compensated of their decrease in price.
