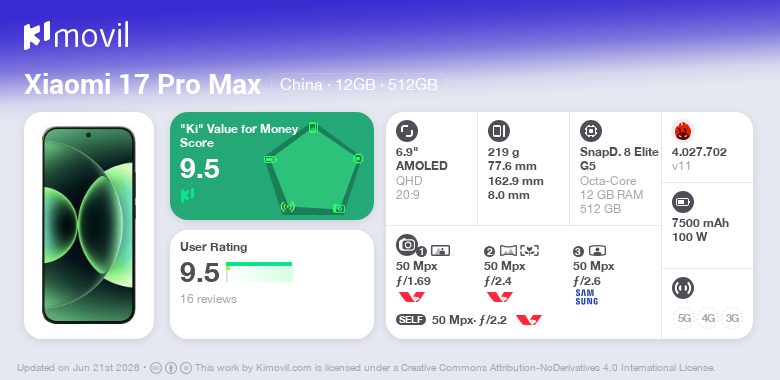

Technical sheet of Xiaomi 17 Pro Max
Description
Pros | Cons |
|---|---|
|
|
Xiaomi has been making waves in the smartphone market for years, consistently delivering high-quality devices at affordable prices. The Xiaomi 17 Pro Max is the latest addition to their lineup, and it is a true powerhouse of a phone. With top-of-the-line specs and a stunning design, this phone is sure to impress even the most discerning tech enthusiasts.
Design & Materials: The Xiaomi 17 Pro Max features a sleek and stylish design, with a large 6.90-inch AMOLED display that boasts a resolution of 1200x2608 (QHD) and a peak brightness of 3500 cd/m². The screen offers HDR10+ support for vibrant colors and sharp contrast. The usable surface of the phone is an impressive 91.7%, thanks to minimal bezels and a sleek design.
In terms of materials, the Xiaomi 17 Pro Max is built to last. It features an aluminium alloy frame and titanium components for added durability. The back of the phone also boasts a unique feature - a 2.9-inch OLED display with a resolution of 976×596. This display supports personalized wallpapers, AI wallpapers, dynamic notifications, and sticky notes, adding an extra layer of functionality to the device.
Audio on the Xiaomi 17 Pro Max is also top-notch, with stereo speakers, Hi-Res Audio support, and Dolby Atmos technology for an immersive sound experience.
Hardware: Under the hood, the Xiaomi 17 Pro Max is powered by the Qualcomm Snapdragon 8 Elite Gen 5 processor, built on a 3nm process for blazing fast performance. The phone comes with either 12GB or 16GB of RAM (LPDDR5X) and storage options of 512GB or 1TB (UFS Storage 4.1). AnTuTu benchmark scores for the Xiaomi 17 Pro Max are an impressive 4379955, showcasing its raw power.
Security on the Xiaomi 17 Pro Max is handled by a fingerprint display, ensuring your data and information stay secure. The phone also features a robust cooling system, with a 5533mm² 3D ring-type cooling system to keep temperatures in check during intense usage.
Camera: The Xiaomi 17 Pro Max features a triple camera setup, with a primary 50.0Mpx Omnivision 950L LightHunter sensor with f/1.69 aperture, a wide-angle + macro lens with a 50.0Mpx Omnivision OV50M sensor with f/2.4 aperture, and a telephoto lens with a 50.0Mpx Samsung GN8 sensor with f/2.6 aperture. The selfie camera on the Xiaomi 17 Pro Max is no slouch either, with a 50.0Mpx Omnivision OV50M sensor with f/2.2 aperture.
Additional camera features include optical stabilization (OIS), 4K and 8K video recording capabilities, telephoto with OIS, ultra-wide angle 102º 6P lens, and macro photography up to 5cm.
Connectivity: The Xiaomi 17 Pro Max offers top-notch connectivity options, including Bluetooth 5.4, dual SIM support, NFC, WiFi 6 (802.11ax), GPS with L1+L5 bands, infrared port, and Xiaomi T1 & T1P signal booster chips for enhanced signal strength. The phone also features four mid- and high-frequency antennas for stable and reliable connectivity.
Battery: One of the standout features of the Xiaomi 17 Pro Max is its massive 7500mAh battery, ensuring all-day usage without needing to constantly recharge. The phone supports fast charging up to 100.0W, as well as wireless charging and reverse charging capabilities. The Xiaomi T1 & T1P signal booster chips and four mid- and high-frequency antennas also help optimize battery life by improving connectivity and reducing power consumption.
Overall, the Xiaomi 17 Pro Max is a flagship smartphone that truly lives up to its high-end status. With top-of-the-line specs, a stunning design, and a robust feature set, this phone is sure to be a hit with tech enthusiasts looking for a premium smartphone experience. If you're in the market for a new device that offers exceptional performance and features, the Xiaomi 17 Pro Max is definitely worth considering.
Brand
| Brand | Xiaomi |
|---|---|
| Aliases | 小米17 Pro Max |
| Best Sellers |
Xiaomi 17 Pro Max prices
Release Date
| Release date | September 2025, 8 months ago |
|---|---|
| Launch price | CN¥ 5,999.00 ($ 885.48) |
Related
Design & Materials of Xiaomi 17 Pro Max
Image gallery
| Image gallery |
|---|
Structure
| Size | 77.6 mm•162.9 mm•8.0 mm Print 3D ModelSee more details |
|---|---|
| Weight | 219 g |
| Usable surface | 92 % |
| Materials | Aluminium alloy , Titanium |
| Resistance certificates (dust, water) | IP68, IP69 |
| Colors | Black White Green Violet |
Screen
| Diagonal |
6.9"
See more details |
|---|---|
| Type | AMOLED |
| Aspect Ratio | 20:9 |
| Resolution | 1200 x 2608 px • QHD |
| Density | 416 ppi • Very high density |
| Others |
|
- Back Display
- - 2.9-inch OLED display
- 976×596 resolution
- TCL Huaxing
- supports personalized wallpapers
- AI wallpapers
- Dynamic notifications
- Sticky notes
According to our users, the screen is very beautiful, with great brightness and 120Hz. The innovative rear screen is very useful, although there are opinions about its resolution.
16 reviews
16 reviews
16 reviews
16 reviews
Performance & Hardware of Xiaomi 17 Pro Max
Processor
| Model | Qualcomm Snapdragon 8 Elite Gen 5 |
|---|---|
| CPU | 2x4.61 GHz ARM + 6x3.63 GHz ARM |
| Type | Octa-Core |
| Nanometer | 3 nm |
| Frequency | 4.61 GHz |
| 64 Bits | Yes |
Graphics
| GPU | Adreno 840 1.2 GHz |
|---|
RAM
| RAM | 12 GB |
|---|---|
| Type | RAM LPDDR5X |
Antutu
| Score |
4.027.702
• Antutu v11
Overall performance better than 99% of devices
See more details |
|---|
Storage
| Capacity | 512 GB |
|---|---|
| Type | UFS Storage 4.1 |
| SD Slot | No |
Security
| Fingerprint | Yes, in screen |
|---|
Sensors
| Fingerprint | Yes |
|---|---|
| Proximity | Yes |
| Light sensor | Yes |
| Accelerometer | Yes |
| Compass | Yes |
| Gyroscope | Yes |
| Barometer | Yes |
| Hall | Yes |
| RGB | Yes |
| Audio |
|
|---|
| Notifications LED | -- |
|---|---|
| Cooling system | Yes |
| Gaming buttons | No |
| Extra |
|
According to our users, the performance is top-notch, with a powerful processor and fluidity. However, there are heating and optimization issues.
16 reviews
16 reviews
16 reviews
Camera of Xiaomi 17 Pro Max
Triple rear camera
Standard
| 1 |
|---|---|
| Resolution | 50 Mpx |
| Aperture | ƒ/ 1.69 |
| Sensor | Omnivision 950L LightHunter |
| Type | CMOS |
| Sensor size | 1/1.28" |
| Pixel size | 1.22 µm |
| Pixel Binning | 1-4 (2x2) |
- Wide Angle + Macro
- 2
- Resolution
- 50 Mpx
- Aperture
- ƒ/ 2.4
- Sensor
- Omnivision OV50M
- Type
- ISOCELL
- Sensor size
- 1/2.76"
- Pixel size
- 0.61 µm
- Pixel Binning
- 1-4 (2x2)
- Telephoto lens
- 3
- Resolution
- 50 Mpx
- Aperture
- ƒ/ 2.6
- Sensor
- Samsung GN8
- Type
- ISOCELL
- Sensor size
- 1/1.96"
- Pixel size
- 0.80 µm
- Pixel Binning
- 1-4 (2x2)
| Flash | Dual LED |
|---|---|
| Optical Stabilisation | Yes |
| Slow Motion Video | Yes, 1920 fps |
| Features |
|
Selfie
| Resolution | 50 Mpx |
|---|---|
| Aperture | ƒ/ 2.2 |
| Sensor | Omnivision OV50M |
| Type | CMOS |
| Sensor size | 1/2.76" |
| Pixel size | 0.61 µm |
| Pixel Binning | 1-4 (2x2) |
- Extra
- Telephoto with OIS
- Ultra wide angle 102º 6P
- Macro up to 5cm
- DxOMark Score
- 159Mobile165Photo146Video
According to our users, the cameras are very good. However, the wide-angle struggles in low light and there are doubts about the flash.
16 reviews
16 reviews
16 reviews
16 reviews
Network compatibility
Connectivity of Xiaomi 17 Pro Max
Bands
| 5G | n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n26 (850), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n71 (600), n77 (3700), n78 (3500), n79 (4700), n80 (1800), n84 (2100) |
|---|---|
| 4G LTE | B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600), B66 (1700/2100), B71 (600) |
| 3G | B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800) |
| 2G | B2 (1900), B3 (1800), B5 (850), B8 (900) |
SIM card
| Type | Dual SIM
Dual Standby (Nano SIM + Nano SIM)
SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM... |
|---|
Wi-Fi
| Standards | 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be) |
|---|---|
| Others |
|
Bluetooth
| Version | Bluetooth 5.4 LELow energy consumption |
|---|---|
| Profiles |
|
Navigation
| Supports | GPS, A-GPS, GLONASS, Beidou, QZSS, GPS (L1+L5), GLONASS (L1), BeiDou (B1), Galileo (E1+E5a), BeiDou (B2), NavIC System, QZSS (L1 + L5) |
|---|
USB
| Charging | Yes |
|---|---|
| Mass Storage | Yes |
| USB On-The-Go (OTG) | Yes |
| USB Type C | Yes |
| USB Host 3.2 | Yes |
SAR
| -- | -- |
|---|
- NFC
- Yes
- Audio Jack
- No
- Radio FM
- No
- Computer sync
- Yes
- OTA sync
- Yes
- Infrared
- Yes
- Tethering.
- Yes
- DLNA
- Yes
- VoLTE
- Yes
- VoNR
- Yes
- Ultra-wideband (UWB)
- Yes
- Extra
- Xiaomi T1 & T1P signal booster chips
- Four mid- and high-frequency antennas
According to our users, global connectivity is a weak point. It lacks Play Store, Android Auto, and has notification issues.
16 reviews
16 reviews
16 reviews
Battery of Xiaomi 17 Pro Max
| Capacity | 7500 mAh See more details |
|---|---|
| Type | Si-Carbon Li-Ion |
| Fast charge | Yes , 100.0W |
| Others |
|
| Extra |
|
According to our users, the battery is incredible, with 100W fast charging and good autonomy. However, there are opinions about its optimization and heating during charging.
- 13%Two days or more
- 75%More than one day
- 13%One day
- 0%Less than a day
- 0%Less than half day
16 reviews
Software of Xiaomi 17 Pro Max
Software
| Operating System |
Android 16
HyperOS 3.X (Android 16) |
|---|---|
| Google Services | Without Google Mobile services |
| Widevine L1 | Yes |
- 7%It comes with a clean operating system
- 73%It has preinstalled apps but they don't bother me
- 20%It has preinstalled apps that I can't uninstall
16 reviews
- 67%Every two months or less
- 33%Every six months
- 0%Once a year
- 0%Never
16 reviews
User reviews about the Xiaomi 17 Pro Max
User score
Let me sum it up for you
Kimovil users believe it is an exceptional device, often rated as "the best" and a true "flagship". They highlight its excellent value for money and fluid performance. However, being a Chinese version, it presents significant limitations in global software and connectivity, generating mixed opinions.
