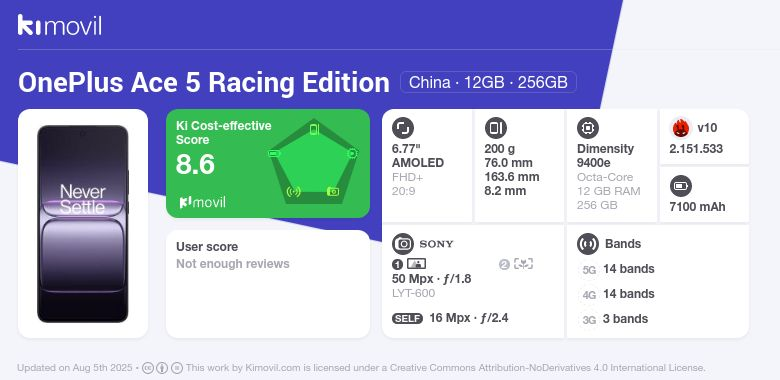

Technical sheet of OnePlus Ace 5 Racing Edition

Description

The OnePlus Ace 5 Racing Edition is the latest addition to the OnePlus Ace 5 series, offering premium features at a more affordable price point. With its release date set for May 2025, this mid-range smartphone is sure to impress tech enthusiasts and casual users alike.

Design & Materials: The OnePlus Ace 5 Racing Edition boasts a sleek design with a large 6.77-inch AMOLED screen that delivers stunning visuals with a resolution of 1080x2392 (FHD+). The display also features a smooth 120 Hz refresh rate and a peak brightness of 1300 cd/m², making it perfect for watching videos and playing games. With HDR10+ support, colors are vibrant and lifelike.

In terms of audio, the OnePlus Ace 5 Racing Edition comes equipped with stereo speakers that deliver rich, immersive sound quality. The device is crafted from high-quality plastic materials that provide durability without sacrificing style. The usable surface of the phone is an impressive 88.8%, giving you more screen real estate to enjoy your favorite content.

Hardware: Under the hood, the OnePlus Ace 5 Racing Edition is powered by the MediaTek Dimensity 9400e processor, built on a 4nm architecture for fast and efficient performance. Users can choose between 12GB or 16GB of RAM (LPDDR5X) to handle multitasking with ease, while storage options include 256GB or 512GB of UFS Storage 4.0 for ample space to store all your apps, photos, and videos.

On the AnTuTu benchmark test (v10), the OnePlus Ace 5 Racing Edition scores an impressive 2151533, showcasing its processing power. Security is also a top priority, with a fingerprint display for quick and secure access to your device. The cooling system, along with the 7300mm² Glacier VC chamber, ensures that the phone stays cool even during intense gaming sessions.

Camera: The OnePlus Ace 5 Racing Edition features a dual-camera setup, with a primary camera using the Sony LYT-600 sensor with 50.0 megapixels and an aperture of f/1.8. This camera delivers sharp and detailed photos in any lighting conditions. Additionally, there is a 2.0-megapixel macro lens with an aperture of f/2.4 for close-up shots. The selfie camera boasts 16.0 megapixels with an aperture of f/2.4, perfect for capturing stunning self-portraits.

Other camera features include optical stabilization (OIS) for steady shots and the ability to shoot 4K video for high-quality footage. Whether you're capturing everyday moments or special occasions, the OnePlus Ace 5 Racing Edition has you covered.

Connectivity: Stay connected with Bluetooth 5.4, dual SIM support, NFC for contactless payments, WiFi 6 (802.11ax) for fast internet speeds, and GPS (L1+L5) for accurate location tracking. Additionally, the OnePlus Ace 5 Racing Edition includes an infrared sensor for added convenience.

Battery: One of the standout features of the OnePlus Ace 5 Racing Edition is its massive 7100mAh battery, providing long-lasting power to keep up with your busy lifestyle. With 80.0W fast charging, you can quickly top up your battery so you can get back to using your device without any downtime.

Overall, the OnePlus Ace 5 Racing Edition is a standout device in the mid-range smartphone market, offering premium features at an affordable price point. With its impressive display, powerful hardware, versatile camera system, and long-lasting battery, this smartphone is sure to impress users who demand high performance and reliability from their mobile devices. Stay tuned for the release of the OnePlus Ace 5 Racing Edition in May 2025 and experience the future of mobile technology in the palm of your hand.

Read More

Brand

Brand OnePlus
Aliases 一加 Ace 5 竞速版, PLF110
Best Sellers
Smartphones by OnePlus

OnePlus Ace 5 Racing Edition prices

Versions and prices
OnePlus Ace 5 Racing Edition China · 12GB · 256GB $ 382
OnePlus Ace 5 Racing Edition China · 12GB · 512GB $ 477
OnePlus Ace 5 Racing Edition China · 16GB · 256GB $ 439
OnePlus Ace 5 Racing Edition China · 16GB · 512GB

Release Date

Release dateMay 2025, 1 year ago
Launch priceCN¥ 1,799.00 ($ 265.67)

Related

Similar name

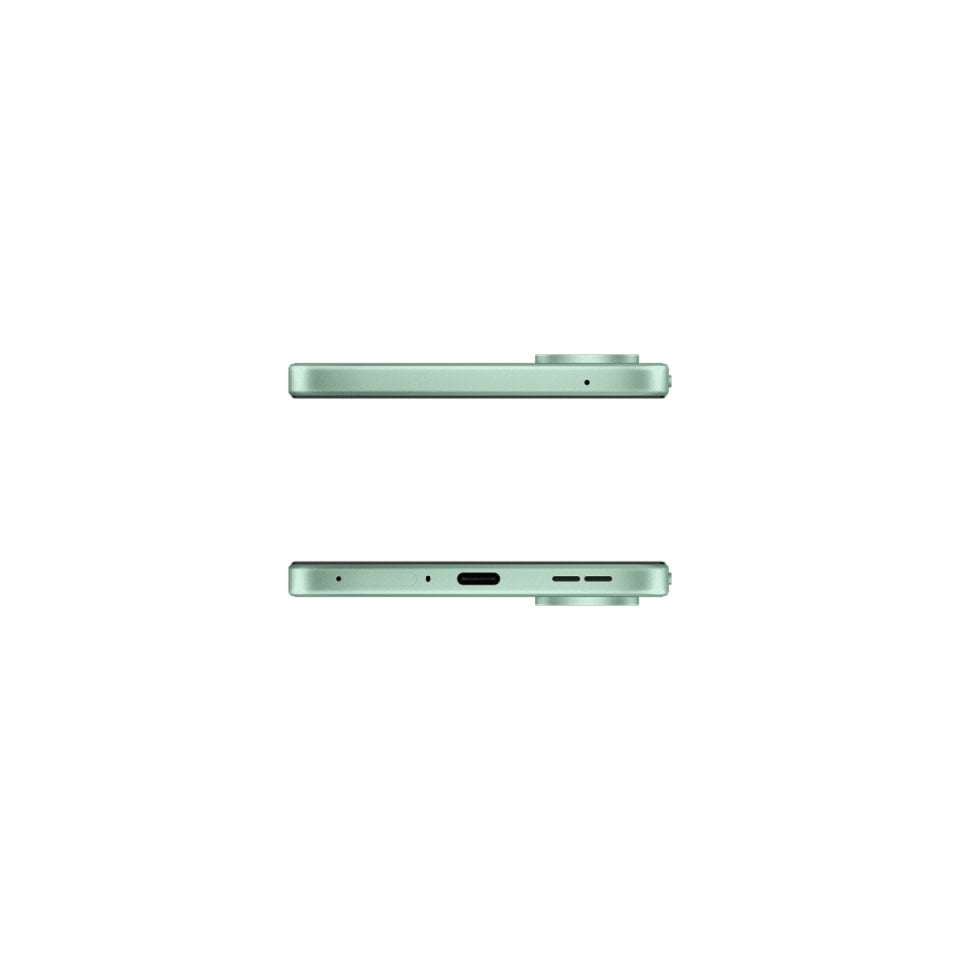

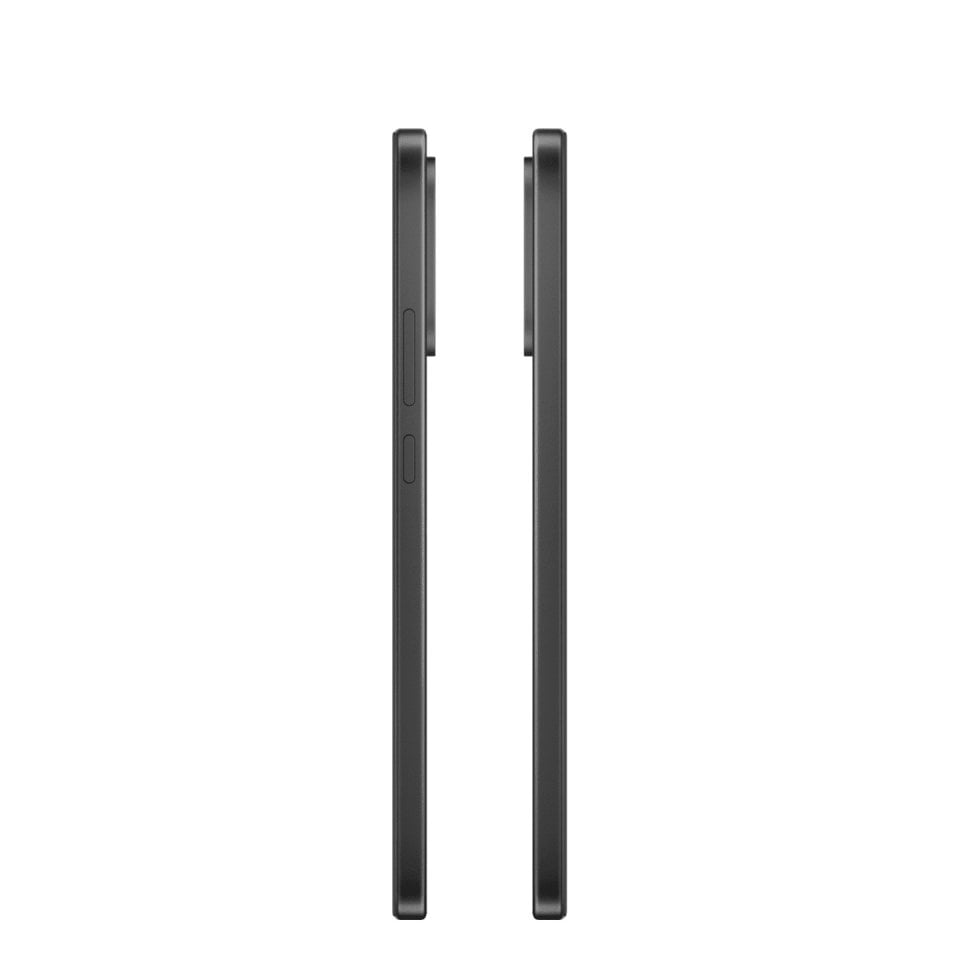

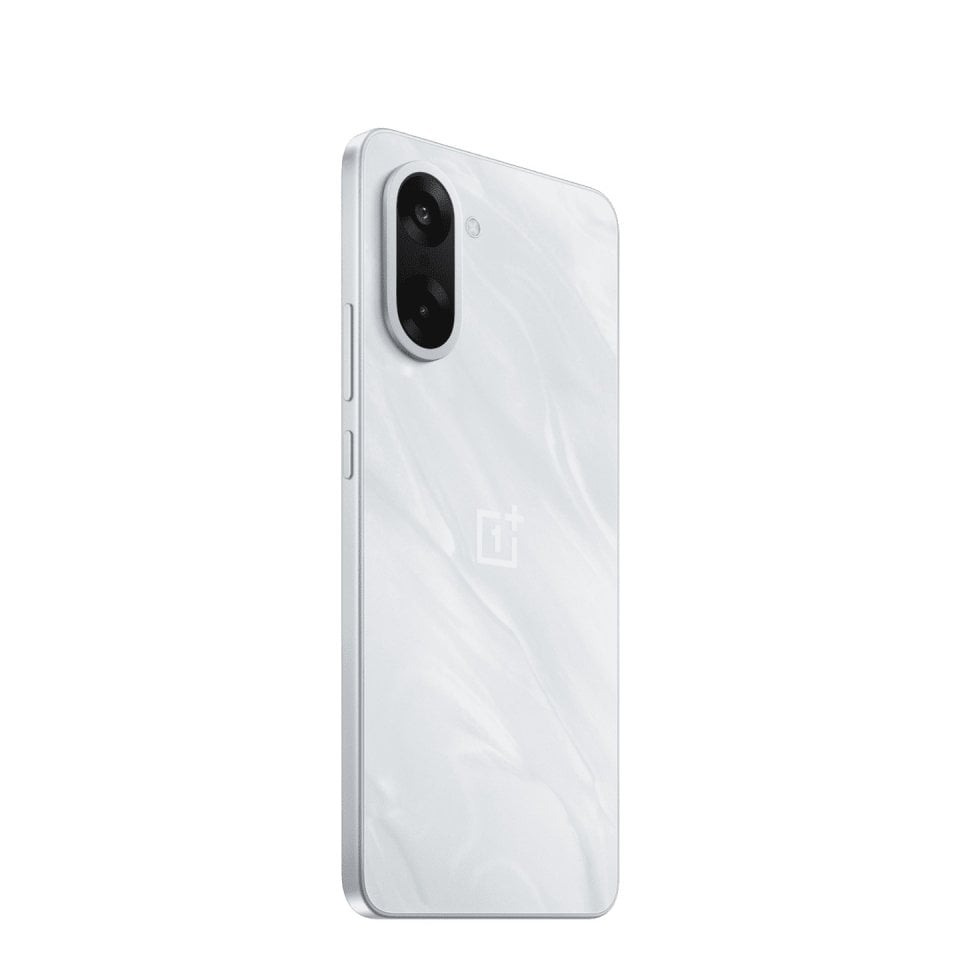

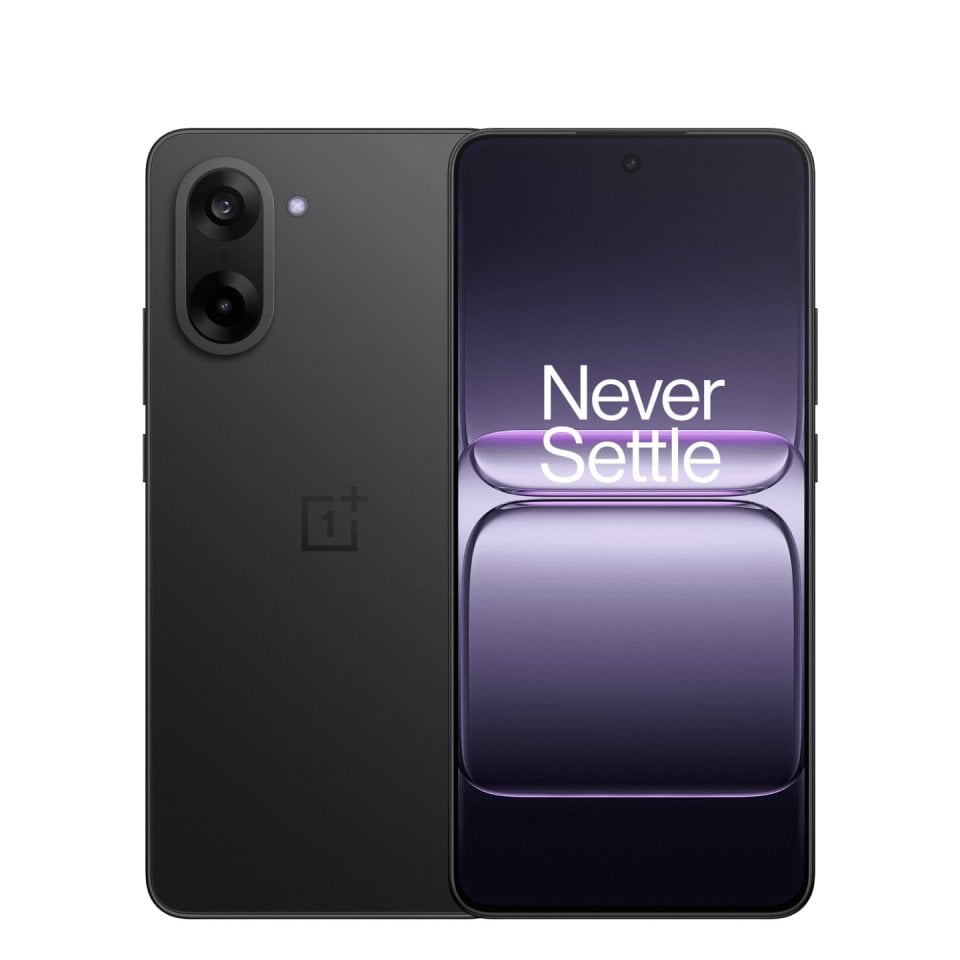

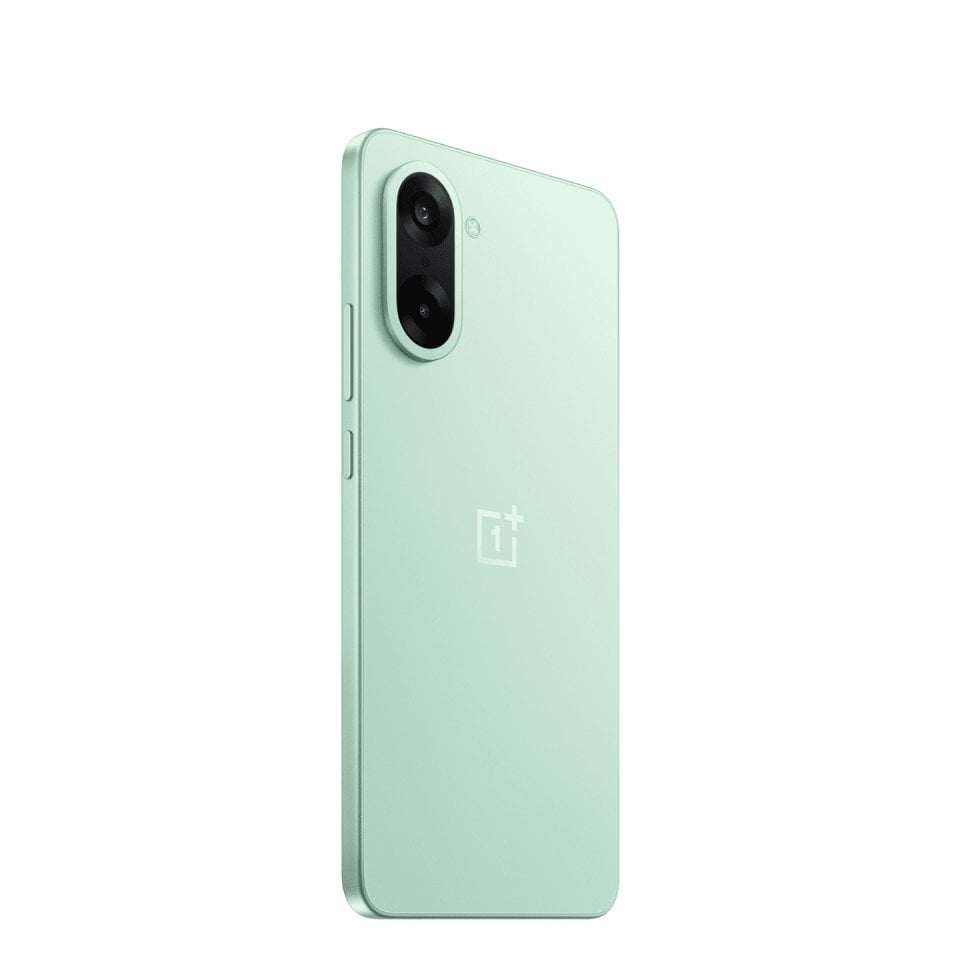

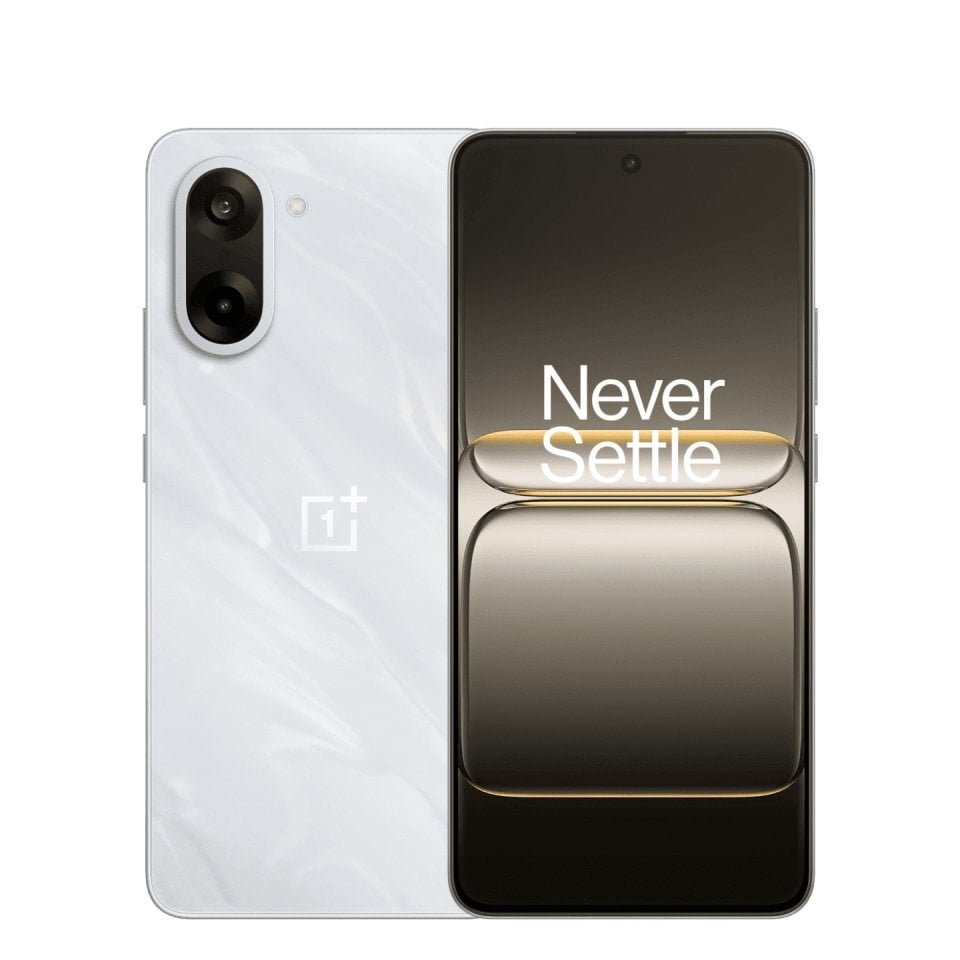

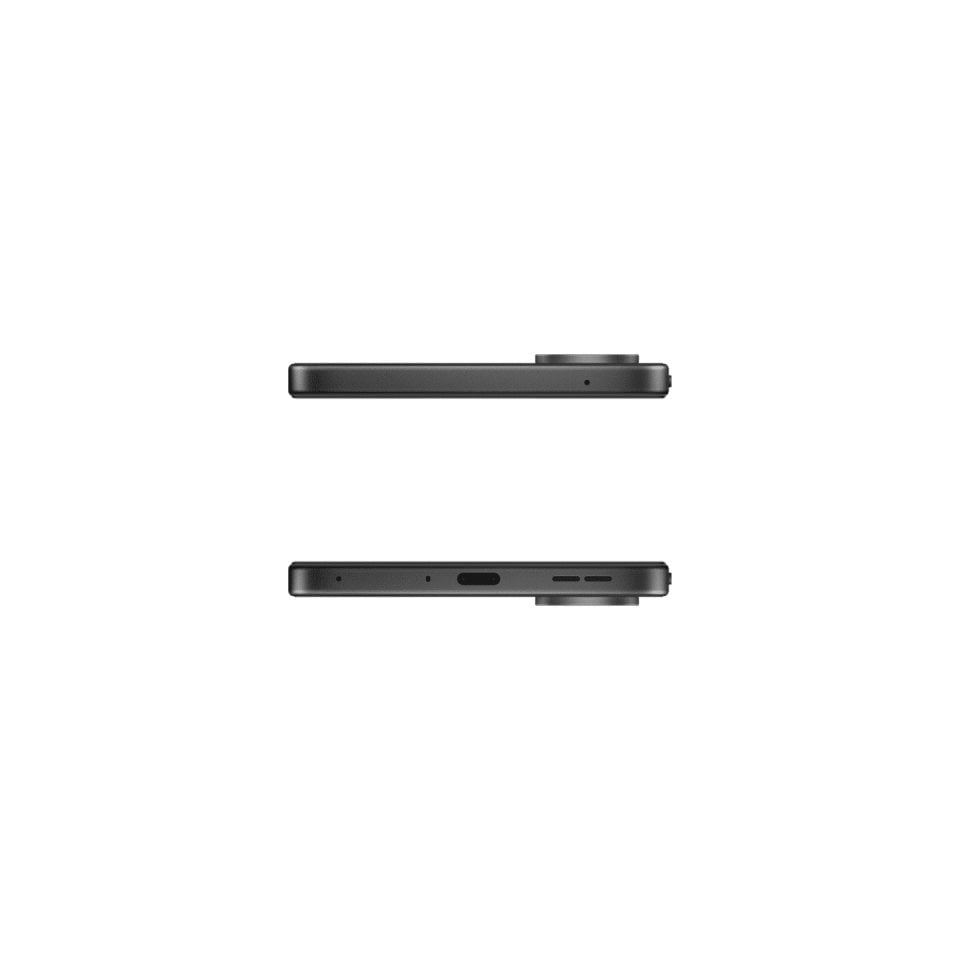

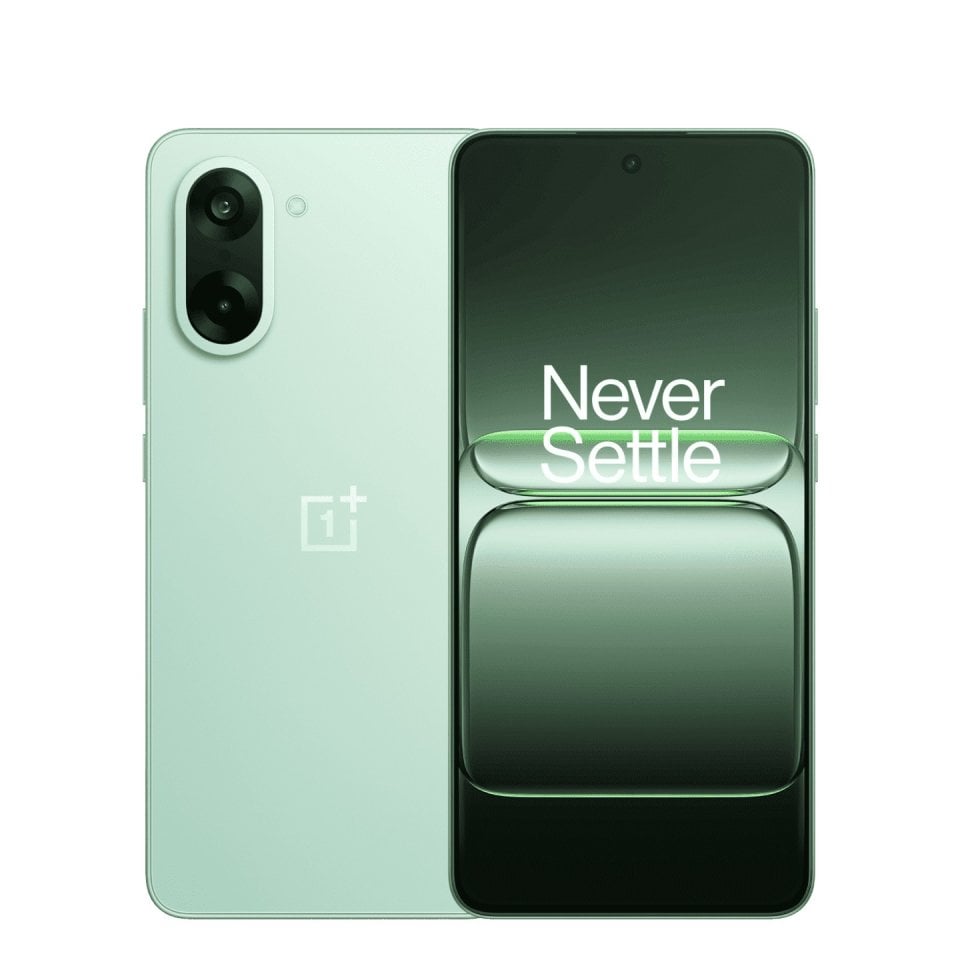

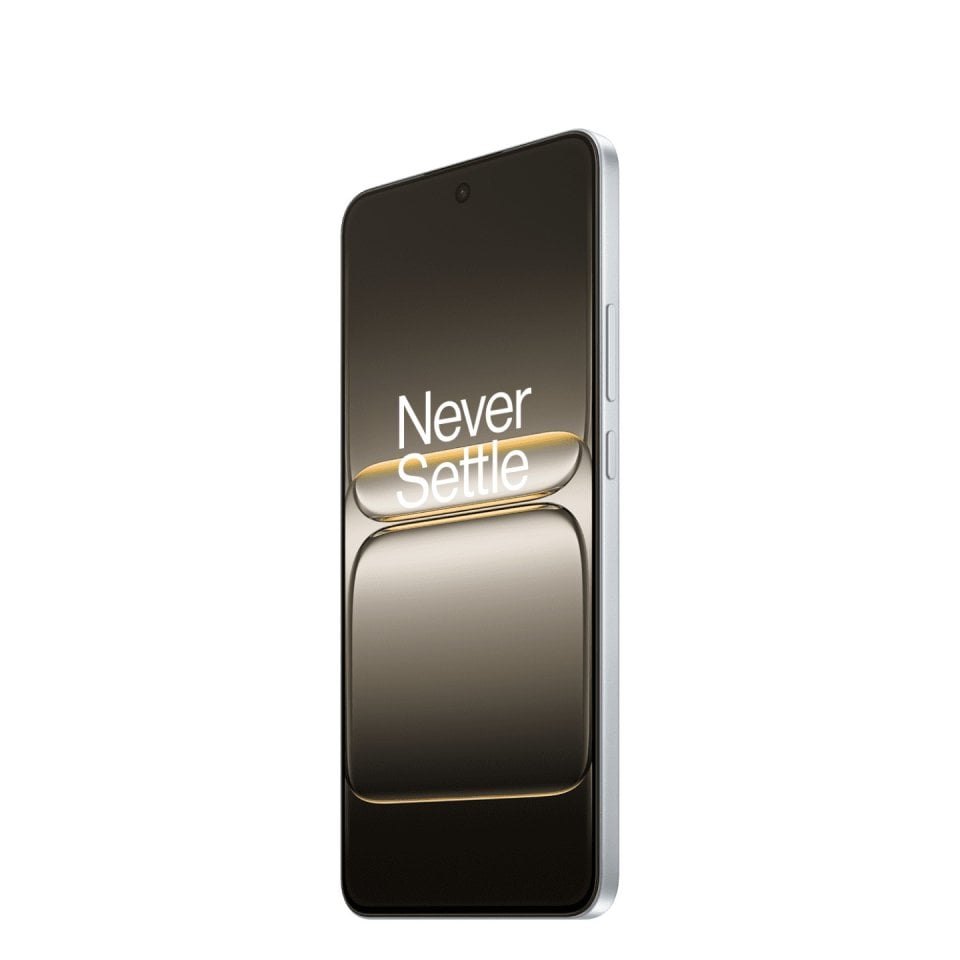

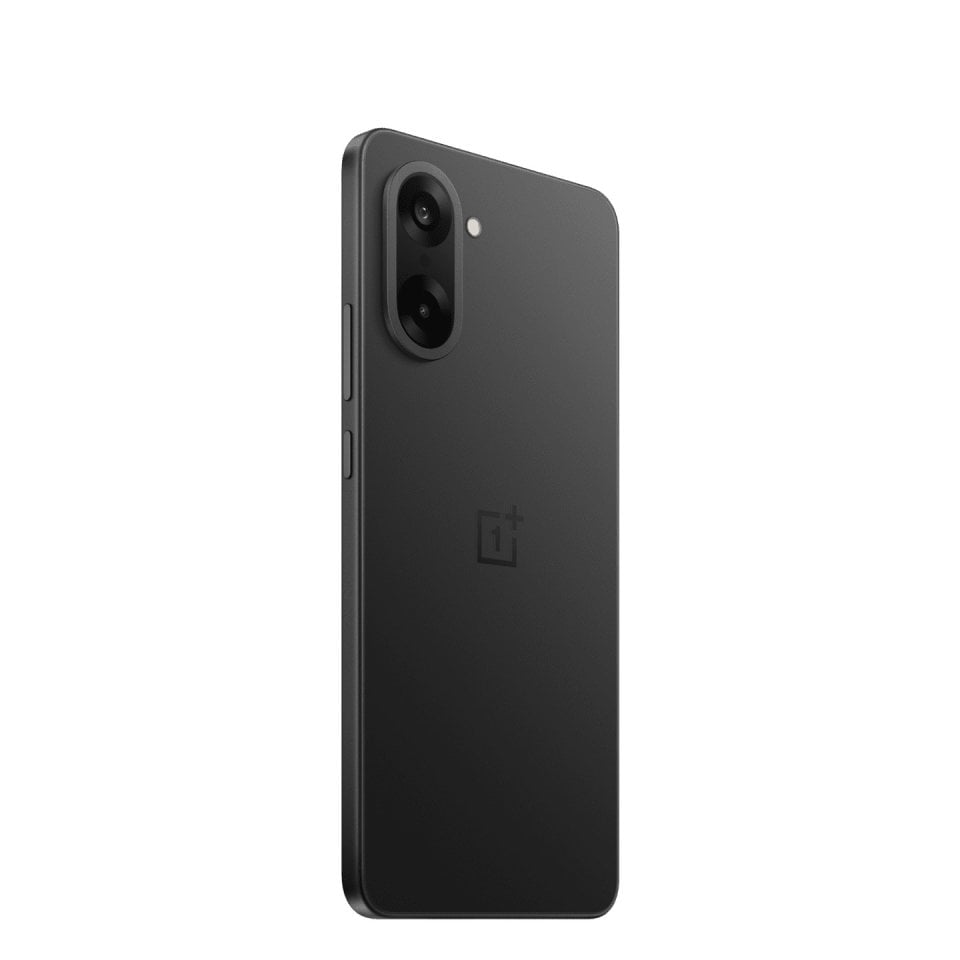

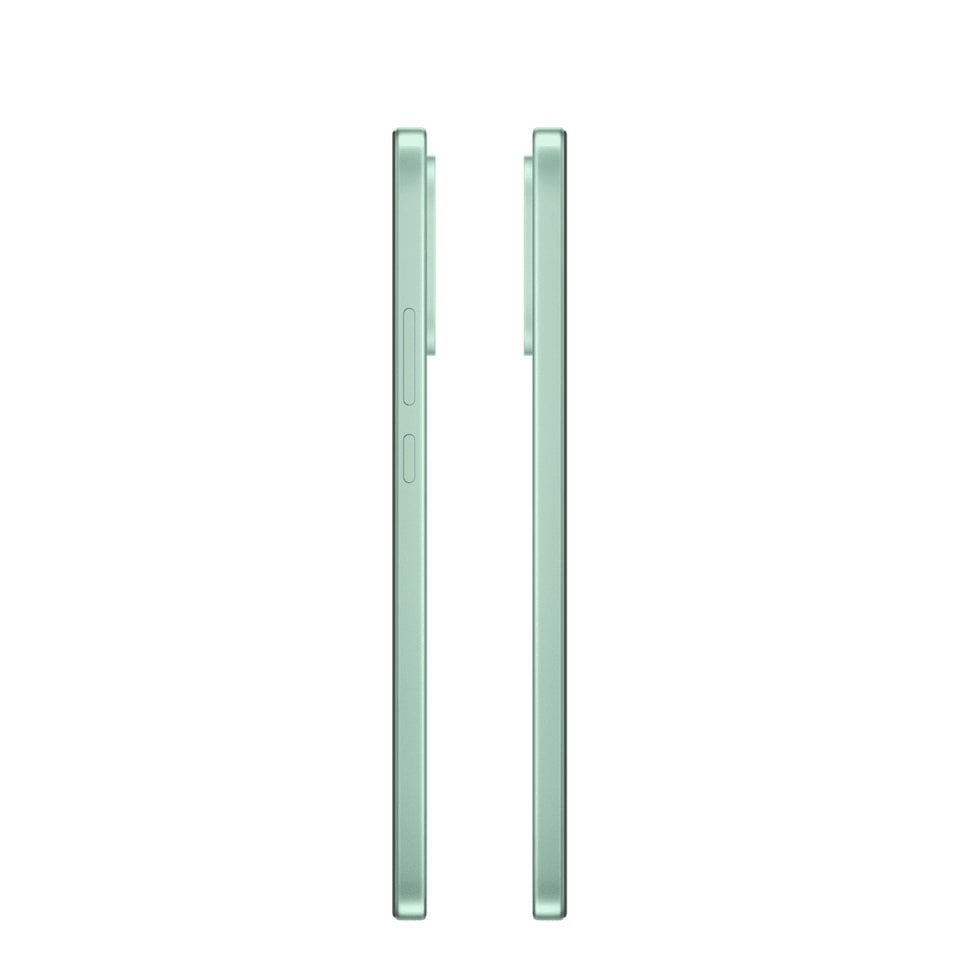

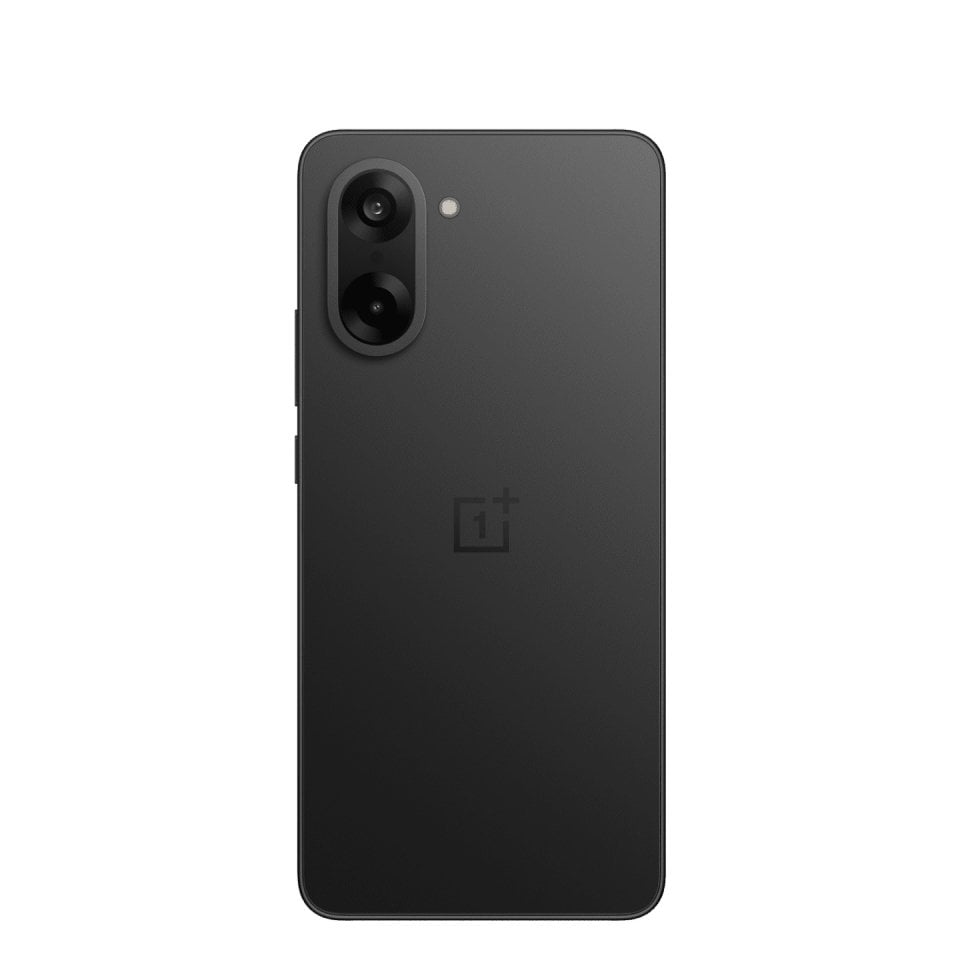

Design & Materials of OnePlus Ace 5 Racing Edition

Image gallery

Image gallery
  • where to buy OnePlus Ace 5 Racing Edition
  • best price for OnePlus Ace 5 Racing Edition
  • deals for OnePlus Ace 5 Racing Edition
  • stores that sells OnePlus Ace 5 Racing Edition
  • buy cheap OnePlus Ace 5 Racing Edition
  • where to buy OnePlus Ace 5 Racing Edition
  • best price for OnePlus Ace 5 Racing Edition
  • deals for OnePlus Ace 5 Racing Edition
  • stores that sells OnePlus Ace 5 Racing Edition
  • buy cheap OnePlus Ace 5 Racing Edition
  • where to buy OnePlus Ace 5 Racing Edition
  • best price for OnePlus Ace 5 Racing Edition
  • deals for OnePlus Ace 5 Racing Edition

Structure

Size
76.0 mm163.6 mm8.2 mm
Print 3D Model
Weight 200 g
Usable surface 89 %
Materials Plastic
Resistance certificates (dust, water) IP64

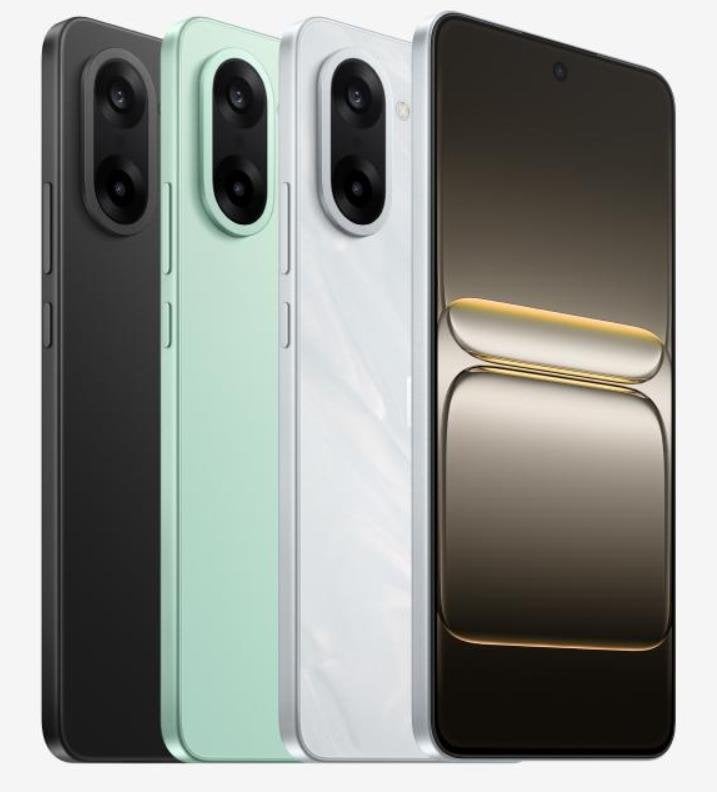

Colors
Black
White
Green

Screen

Diagonal
6.77"
Type AMOLED
Aspect Ratio 20:9
Resolution 1080 x 2392 px FHD+
Density 388 ppi High Density
Others
  • Hole-punch Notch
  • SGS Certified
  • 2160 Hz PWM
  • Refresh rate 120 Hz
  • Max brightness HBM - 800 cd/m²
  • Peak brightness - 1300 cd/m²
  • Always-On Display
  • TÜV Rheinland Eye Comfort Certification
  • HDR10+
  • DCI-P3
  • 10 Bits panel
  • Scratch resistant
  • 3D curved glass screen
  • Armor glass
  • Capacitive
  • Multi-touch
  • Frameless
  • LTPO (Low Temperature PolySilicon oxide)
Best big screen mobilesBest mobile phones with AMOLED screen

Performance & Hardware of OnePlus Ace 5 Racing Edition

Processor

Model MediaTek Dimensity 9400e
CPU 1xCortex X4 3,4GHZ + 3xCortex X4 2,85GHZ + 4xCortex A720 2GHZ
Type Octa-Core
Nanometer 4 nm
Frequency 3.4 GHz
64 Bits Yes
More smartphones with Dimensity 9400e processor

Graphics

GPU Immortalis-G720 MC12

RAM

RAM 12 GB
Type RAM LPDDR5X
More smartphones with 12GB RAM memory

Antutu

Score
2.472.447 Antutu v11
Overall performance better than 96% of devices

Storage

Capacity 256 GB
Type UFS Storage 4.0
SD Slot No
More smartphones with 256GB of internal storage

Security

Fingerprint Yes, in screen

Sensors

Fingerprint Yes
Proximity Yes
Light sensor Yes
Accelerometer Yes
Compass Yes
Gyroscope Yes
Gravity Yes
Audio
Audio
  • Stereo Speakers
  • 2 microphones
Others
Notifications LED --
Cooling system Yes
Gaming buttons No
Extra
  • 7300mm² Glacier VC chamber

Camera of OnePlus Ace 5 Racing Edition

Double rear camera

Standard
1
Resolution 50 Mpx
Aperture ƒ/ 1.8
Sensor Sony LYT-600
Type CMOS
Sensor size 1/1.95"
Pixel size 0.70 µm
Pixel Binning 1-4 (2x2)
2
Resolution
2 Mpx
Aperture
ƒ/ 2.4
Sensor
--
Type
CMOS
Pixel size
--
Flash LED
Optical Stabilisation Yes
Slow Motion Video Yes, 240 fps
Features
  • 4K Video
  • Digital zoom
  • Dual camera
  • Digital image stabilization
  • Optical Stabilization (OIS)
  • Autofocus
  • Touch focus
  • Phase detection autofocus (PDAF)
  • Continuous shooting
  • Geotagging
  • Panorama
  • HDR
  • Face detection
  • White balance settings
  • ISO settings
  • Exposure compensation
  • Scene mode
  • Self-timer
More smartphones with LYT-600 lens modelMore smartphones with LED

Selfie

Resolution 16 Mpx
Aperture ƒ/ 2.4
Sensor --
Type CMOS
Pixel size --
See more details
Frequency Checker

Network compatibility

Go to tool

Connectivity of OnePlus Ace 5 Racing Edition

Bands

5G n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n8 (900), n20 (800), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n77 (3700), n78 (3500)
4G LTE B1 (2100), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B8 (900), B19 (800), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600), B66 (1700/2100)
3G B1 (2100), B5 (850), B8 (900)
2G B3 (1800), B5 (850), B8 (900)

SIM card

TypeDual SIM Dual Standby (Nano SIM + Nano SIM)

SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be)
Others
  • Wi-Fi Hotspot
  • Wi-Fi Direct
  • Wi-Fi Display
  • Wi-Fi MiMO

Bluetooth

Version Bluetooth 5.4
Profiles
  • A2DP (Advanced Audio Distribution Profile)
  • APT-x
  • LDAC
  • SBC
  • AAC

Navigation

Supports GPS, A-GPS, GLONASS, Beidou, QZSS, Galileo, GPS (L1+L5), GLONASS (L1), BeiDou (B1), Galileo (E1+E5a), BeiDou (B2), QZSS (L1 + L5), Galileo (E1+E5a+E5b)

USB

Charging Yes
Mass Storage Yes
USB On-The-Go (OTG) Yes
USB Type C Yes
USB Host 2.0 Yes

SAR

-- --
Others
NFC
Yes
Audio Jack
No
Radio FM
No
Computer sync
Yes
Infrared
Yes
Tethering.
Yes
VoLTE
Yes

Battery of OnePlus Ace 5 Racing Edition

Capacity
7100 mAh
Type Si-Carbon Li-Ion
Fast charge Yes , 80.0W
Others
  • Non-removable

Software of OnePlus Ace 5 Racing Edition
