Technical sheet of Ulefone Armor Pad 5 Pro
Description
The Ulefone Armor Pad 5 Pro is a rugged mid-range tablet that pushes the boundaries of durability and performance. Released in October 2025 by the reputable brand Ulefone, this tablet is designed to withstand the toughest environments while delivering top-notch features and specifications.
Design & Materials:
The Ulefone Armor Pad 5 Pro boasts an impressive 11.00-inch AMOLED screen with a resolution of 1920x1200 (FHD). With a refresh rate of 120 Hz and a peak brightness of 2200 cd/m², this tablet provides a stunning visual experience. The screen also features a 5000000:1 contrast ratio, ensuring vivid colors and deep blacks.
In terms of audio, the Armor Pad 5 Pro comes equipped with stereo speakers for an immersive sound experience. The tablet is built to last, thanks to its rugged smartphone design and Corning Gorilla Glass 3 protection. With a usable surface of 72.1%, the device offers a comfortable grip and easy handling.

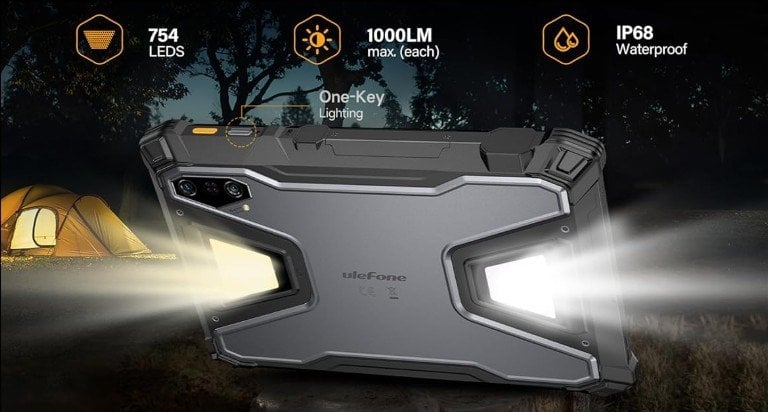

One standout feature of the Ulefone Armor Pad 5 Pro is the inclusion of dual 1000 lumens camping lights, providing added functionality for outdoor use.
Hardware:
Powering the Ulefone Armor Pad 5 Pro is the MediaTek Dimensity 7400 processor, built on a 4nm architecture for efficient performance. The tablet packs a whopping 12GB of LPDDR5X RAM and 512GB of UFS Storage 3.1, ensuring smooth multitasking and ample storage space. For those who need additional storage, the device supports external SD cards.
With an AnTuTu benchmark score of 777255, the Armor Pad 5 Pro delivers exceptional performance for a mid-range tablet. Security is ensured with a side-mounted fingerprint sensor, providing convenient and secure access to the device. The tablet also features a cooling system to prevent overheating during intense usage.
Camera:

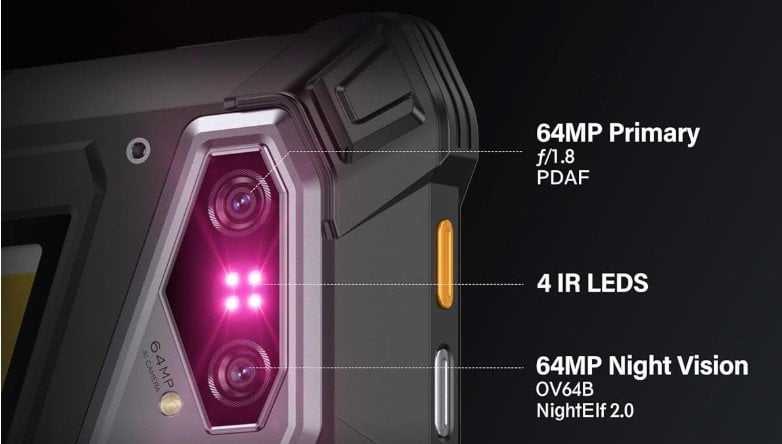

The Ulefone Armor Pad 5 Pro features a dual-camera setup, with a primary camera using the Sony IMX682 Exmor RS sensor with 64.0Mpx resolution and an aperture of f/1.9. The tablet also includes a night vision camera with the Omnivision OV64B sensor, providing clear and detailed images even in low light conditions.
For selfie enthusiasts, the Armor Pad 5 Pro offers a Samsung S5KGD1 front camera with 32.0Mpx resolution and an f/2.45 aperture. The tablet supports 4K and 8K video recording, along with four IR LEDs for enhanced imaging capabilities. With a 117.3º field of view ultra-wide lens, users can capture stunning landscapes and group shots with ease.
Connectivity:
The Ulefone Armor Pad 5 Pro is packed with connectivity options, including Bluetooth 5.4, Dual SIM support, NFC, an audio jack, and WiFi 6 (802.11ax) for fast and stable wireless connections. The tablet is also compatible with the uSmart E03, E02, and E01 endoscopes, as well as the uSmart C01 microscope, expanding its functionality for diverse applications.
Battery:

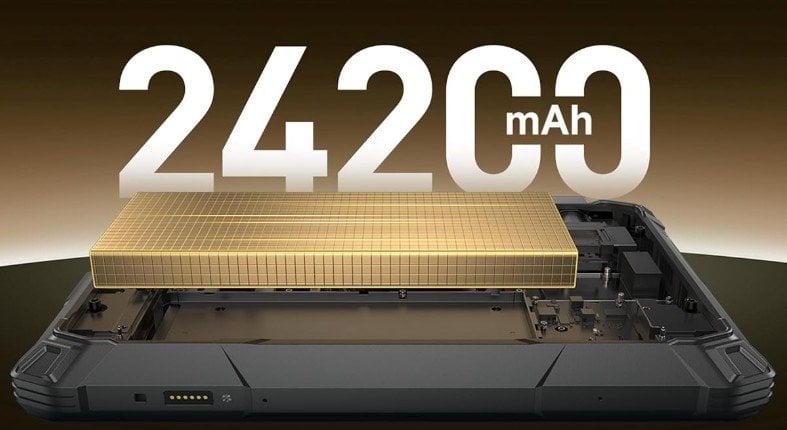

One of the standout features of the Ulefone Armor Pad 5 Pro is its massive 24200mAh battery, providing long-lasting power for extended usage. The tablet supports fast charging up to 120.0W, allowing users to quickly replenish the battery when needed. Additionally, the device features reverse charging capabilities, enabling it to act as a power bank for other devices. Compatible with the uSmart endoscopes and microscope, the Armor Pad 5 Pro is a versatile tool for various professional and personal uses.
Overall, the Ulefone Armor Pad 5 Pro is a rugged and feature-packed tablet that excels in both durability and performance. With its robust design, top-notch specifications, and versatile functionalities, this tablet is a compelling choice for users who require a reliable and high-performance device for their daily tasks and adventures.
Brand
| Brand | Ulefone |
|---|---|
| Best Sellers |
Ulefone Armor Pad 5 Pro prices
| Ulefone Armor Pad 5 Pro • Global · 12GB · 512GB | $ 487 |
|---|
Release Date
| Release date | October 2025, 7 months ago |
|---|
Design & Materials of Ulefone Armor Pad 5 Pro
Image gallery
| Image gallery |
|---|
Structure
| Size | 269.7 mm•179.5 mm•27.8 mm See more details |
|---|---|
| Weight | 1327 g |
| Usable surface | 72 % |
| Materials | Rugged Smartphone |
| Resistance certificates (dust, water) | IP68, IP69 , MIL-STD-810H |
| Colors | Black |
| Repairability | Class A B C D E |
|---|---|
| Drop resistance | Class A B C D E • 85 drops without defects |
Screen
| Diagonal |
11"
See more details |
|---|---|
| Type | AMOLED |
| Aspect Ratio | 8:5 |
| Resolution | 1920 x 1200 px • FHD |
| Density | 206 ppi • Medium Density |
| Others |
|
- Extra
- Dual 1000 lumens camping light
Performance & Hardware of Ulefone Armor Pad 5 Pro
Processor
| Model | MediaTek Dimensity 7400 |
|---|---|
| CPU | 4x2.6 GHz Cortex•A78 + 4x 2.0 GHz Cortex•A55 |
| Type | Octa-Core |
| Nanometer | 4 nm |
| Frequency | 2.6 GHz |
| 64 Bits | Yes |
Graphics
| GPU | Mali-G615 MP2 |
|---|
RAM
| RAM | 12 GB |
|---|---|
| Type | RAM LPDDR5X |
Antutu
| Score |
848.636
• Antutu v11
Overall performance better than 81% of devices
See more details |
|---|
Storage
| Capacity | 512 GB |
|---|---|
| Type | UFS Storage 3.1 |
| SD Slot | Yes , Independent SD slot |
Security
| Fingerprint | Yes, on the side |
|---|
Sensors
| Fingerprint | Yes |
|---|---|
| Proximity | Yes |
| Light sensor | Yes |
| Accelerometer | Yes |
| Compass | Yes |
| Gyroscope | Yes |
| Gravity | Yes |
| Geomagnetic | Yes |
| Magnetometer | Yes |
| Pedometer | Yes |
| Audio |
|
|---|
| Notifications LED | Color LED Notifications |
|---|---|
| Cooling system | Yes |
| Gaming buttons | No |
Camera of Ulefone Armor Pad 5 Pro
Double rear camera
Standard
| 1 |
|---|---|
| Resolution | 64 Mpx |
| Aperture | ƒ/ 1.9 |
| Sensor | Sony IMX682 Exmor RS |
| Type | CMOS |
| Sensor size | 1/1.7" |
| Pixel size | 0.80 µm |
| Pixel Binning | 1-4 (2x2) |
- Night vision camera
- 2
- Resolution
- 64 Mpx
- Aperture
- ƒ/ 1.79
- Sensor
- Omnivision OV64B
- Type
- CMOS
- Sensor size
- 1/2"
- Pixel size
- 0.70 µm
- Pixel Binning
- 1-4 (2x2)
| Flash | Dual LED |
|---|---|
| Optical Stabilisation | No |
| Slow Motion Video | Yes, 120 fps |
| Features |
|
Selfie
| Resolution | 32 Mpx |
|---|---|
| Aperture | ƒ/ 2.45 |
| Sensor | Samsung S5KGD1 |
| Type | ISOCELL |
| Sensor size | 1/2.8" |
| Pixel size | 0.80 µm |
| Pixel Binning | 1-4 (2x2) |
- Extra
- 4 IR LEDS
- 117.3º FOV UW
Network compatibility
Connectivity of Ulefone Armor Pad 5 Pro
Bands
| 5G | n1 (2100), n2 (1900 PCS), n3 (1800), n7 (2600), n8 (900), n20 (800), n25 (1900), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n71 (600), n77 (3700), n78 (3500), n79 (4700) |
|---|---|
| 4G LTE | B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B32 (1500), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B66 (1700/2100), B71 (600) |
| 3G | B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800) |
| 2G | CDMA BC0 (800), CDMA BC1 (1900), CDMA BC10 (800 Secondary), B2 (1900), B3 (1800), B5 (850), B8 (900) |
SIM card
| Type | Dual SIM
Dual Standby (Nano SIM + Nano SIM)
SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM... |
|---|
Wi-Fi
| Standards | 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 6E |
|---|---|
| Others |
|
Bluetooth
| Version | Bluetooth 5.4 LELow energy consumption |
|---|---|
| Profiles |
|
Navigation
| Supports | GPS, A-GPS, GLONASS, Beidou, QZSS, Galileo, NavIC System |
|---|
USB
| Charging | Yes |
|---|---|
| Mass Storage | Yes |
| USB On-The-Go (OTG) | Yes |
| USB Type C | Yes |
| USB Host 3.2 | Yes |
SAR
| -- | -- |
|---|
Battery of Ulefone Armor Pad 5 Pro
| Capacity | 24200 mAh See more details |
|---|---|
| Type | Li-Polymer |
| Fast charge | Yes , 120.0W |
| Others |
|
| Efficiency | DGA |
|---|---|
| Runtime per charge | ~ 402h |
| Charge cycles | 1000 cycles |
Software of Ulefone Armor Pad 5 Pro
Software
| Operating System |
Android 15
Android 15 |
|---|---|
| Google Services | With Google Mobile Services |
